Modular Valve Line Overview

Modular Valves are quite simple compared to other pneumatic components when you examine the elements that make up the line of products.  Essentially there are only 3 base valves and 18 different ways to actuate the base valve.  These combinations give a variety of versatile valve elements that broaden the possibilities when designing a pneumatic circuit.  These valves are the ideal manifold mounted solution to pneumatic circuit applications.

View All Modular Valves
View PDF Catalog of Modular Valves
View Circuit Ideas and Applications
View Assembly Tips
View Octoport Key (manifold porting)


Modular Series Base Valves

Can be used as a:
• 2-way normally closed valve
• 2-way normally open valve
• 3-way normally closed valve
• 3-way normally open valve
• 3-way diverter valve
• 3-way selector valve
Can be used as a:
• 4-way fully ported valve
• Dual 2-way valves
 (one N.O. & one N.C.)
• Dual 3-way valves with common exhaust
 (one N.O. & one N.C.)
Can be used as a:
• 6-way fully ported valve
• Dual 2-way normally closed valve
• Dual 2-way normally open valve
• Dual 3-way normally closed valve
• Dual 3-way normally open valve
• Dual selector valve
* R-436 and R-421 are exceptions to the Basic 3

Key Points to the Modular Line:

  • All Valves are Universally Ported
        (There is not a required direction
           for flow through the valve ports)

  • Use Any Compatibles Fluid
  • Flow is 9 SCFM at 100 PSIG
            (255 lpm at 6.9 bar)

  • Vacuum to 150 PSI
  • Balanced Spool Design
  • All Valves are Keyed to manifold
  • Valves are interchangeable to alter
     functions and features of circuit



Key Points to Actuator Methods:

  • Each Valve needs 2 Actuators

  • Not all Actuators can be combined
    on same valve   (8 ports max)

  • Minimum Pressure for Pilots:
     With Spring = 40 PSIG Minimum
     Without  Spring = 20 PSIG Minimum
     Lower pressure pilots available

Here is where the flexibility for design and versatility of function come in:   Combine your base valve with 2 of the following.

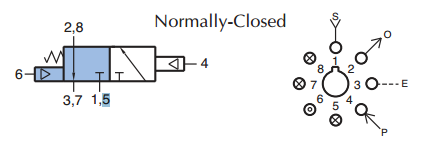

Example:  An Auxiliary Pilot and Single Air Pilot combined with a 3-Way base valve give you the R-301

Actuation Methods

Spring Return

Single Air Pilot

Auxiliary Pilot
Used for locking out valve
or pilot over override

Removable Spring &
Auxiliary Pilot


2 Air Pilots "OR"

Differential Air Pilots

Solenoid Piloted

Delay Out From Air Pilot

Delay In To Air Pilot


Low Pressure Air Pilot

3 Air Pilots "OR"

4 Air Pilots "OR"


Independent Shuttle Valve
& Air Pilot

Shuttle Valve To Air Pilot

Shuttle Valve
To Low Pressure


Delay To Air Pilot


Bleed Pressure Pilot


Fluidics Interface Pilot
( 8" H2O Pilot Pressure)
