R-421

   Product will ship within 5 business days
R-421

More Views

Get CAD files:

Details

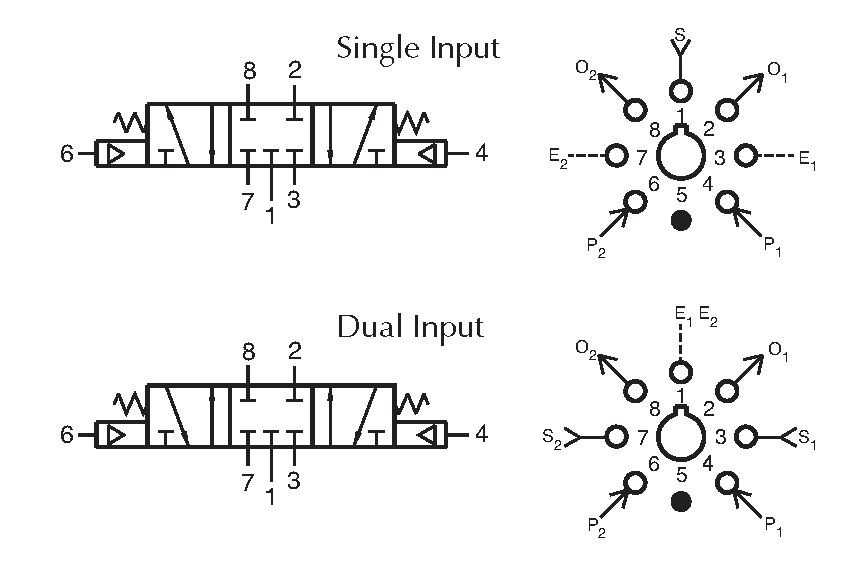

Dual 4-Way, 5-Ported, 3-Position

Notes

Minimum Pilot Pressure: 40 psig
See Catalog: Page 274

Uses

R-421 is a 4-way, 3 position, spring centered, fully ported valve. In the center position, all ports are blocked It is ideal for approximate positioning and holding of pneumatic cylinders.

Additional Information

Air Flow9 scfm @ 100 psig
Max PSI150 psig
Temperature Range32 to 180°F
