Clippard PQ Flow Controls Series

Clippard PQ Flow Control Series

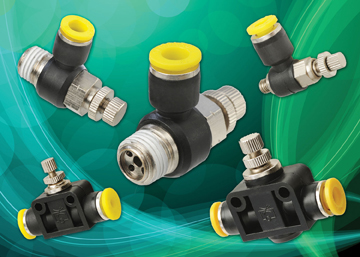

PQ-FV In-Line Flow Controls can be easily added to existing circuitry and are lightweight and compact in size. Since it is a tube-to-tube connection, in-line flow controls may be installed as a meter-in or meter-out device.

The PQ-C Elbow Controls are ideal for low cost and lightweight applications when mounting directly to an NPT port on a cylinder or valve is required.

In the meter-out versions, intake air flows freely through the flow control; exhaust air is metered out through an adjustment screw. With the meter-in series, air is metered in through an adjustment screw; exhaust air flows freely. Control is varied through a finely threaded adjustment screw.  A locking nut is provided so it can be secured in its final setting.

•  Small, compact size
•  Design flexibility and fast response
•  Complete rotation of the valve body around the bolt
    allows for optimum positioning of tubing
•  Special adjustment needle design allows large adjustment
    ranges with high precision
•  Ideal for use with polyurethane, nylon, polyethylene
    and polypropylene tubing




           PQ-CV & PQ-CI                                           PQ-FV


Medium:  Air
Pressure Range:  0 to 150 psig
Vacuum:  0 to 29.5" Hg
Ports:  #10-32, 1/8" NPT, 1/4" NPT,
    3/8" NPT, 1/2" NPT
Adjustment:  Knurled knob
Material:  Electroless Nickel-plated brass, plastic
   resin, stainless steel gripper ring, Nitrile seals


Download Press Release
Download Data Sheet



Request a Free CatalogRequest a FREE Catalog
 or
Download the Electronic Version (PDF)


Sign Up to Receive Monthly Product News EmailsSign Up to Receive Monthly Emails about Clippard products, news and applications



Part No. Tubing
Size
Thread
"T"
"H" Hex "A" Max. "W"
Right Angle Meter-Out
PQ-CV04N
PQ-CV04P
PQ-CV05N
PQ-CV05P
PQ-CV08N
PQ-CV08P
PQ-CV08Q
PQ-CV12Q
PQ-CV12W
PQ-CV16Q
1/8"
1/8"
5/32"
5/32"
1/4"
1/4"
1/4"
3/8"
3/8"
1/2"
#10-32
1/8" NPT
#10-32
1/8" NPT
#10-32
1/8" NPT
1/4" NPT
1/4" NPT
3/8" NPT
3/8" NPT
5/16"
7/16"
5/16"
7/16"
5/16"
7/16"
9/16"
9/16"
3/4"
3/4"
1.230"
1.630"
1.210"
1.570"
1.240"
1.615"
1.900=
1.950
2.395
2.270
0.990"
1.165"
0.990"
1.130"
1.090"
1.215"
1.360"
1.610"
1.690"
1.745"

Right Angle Meter-In
PQ-CI04N
PQ-CI04P
PQ-CI05N
PQ-CI05P
PQ-CI08N
PQ-CI08P
PQ-CI08Q
PQ-CI12Q
PQ-CI12W
PQ-CI16Q
1/8"
1/8"
5/32"
5/32"
1/4"
1/4"
1/4"
3/8"
3/8"
1/2"
#10-32
1/8" NPT
#10-32
1/8" NPT
#10-32
1/8" NPT
1/4" NPT
1/4" NPT
3/8" NPT
3/8" NPT
5/16"
7/16"
5/16"
7/16"
5/16"
7/16"
9/16"
9/16"
3/4"
3/4"
1.230"
1.630"
1.210"
1.570"
1.240"
1.615"
1.900"
1.950"
2.395"
2.270"
0.990"
1.165"
0.990"
1.130"
1.090"
1.215"
1.360"
1.610"
1.690"
1.745"

Part No. Tubing
Size
Thread
"T"
"H" Hex "A" Max. "W"
In-Line (Meter In or Meter Out)
PQ-FV04
PQ-FV05
PQ-FV06M
PQ-FV08
PQ-FV08M
PQ-FV12
PQ-FV16
1/8"
5/32"
6 mm
1/4"
8 mm
3/8"
1/2"
1/8"
5/32"
6 mm
1/4"
8 mm
3/8"
1/2"
#10-32
1/8" NPT
#10-32
1/8" NPT
#10-32
1/8" NPT
1/4" NPT
#10-32
1/8" NPT
#10-32
1/8" NPT
#10-32
1/8" NPT
1/4" NPT
#10-32
1/8" NPT
#10-32
1/8" NPT
#10-32
1/8" NPT
1/4" NPT
