PQ-CV08P

   Product will ship within 35 business days
PQ-CV08P

More Views

Details

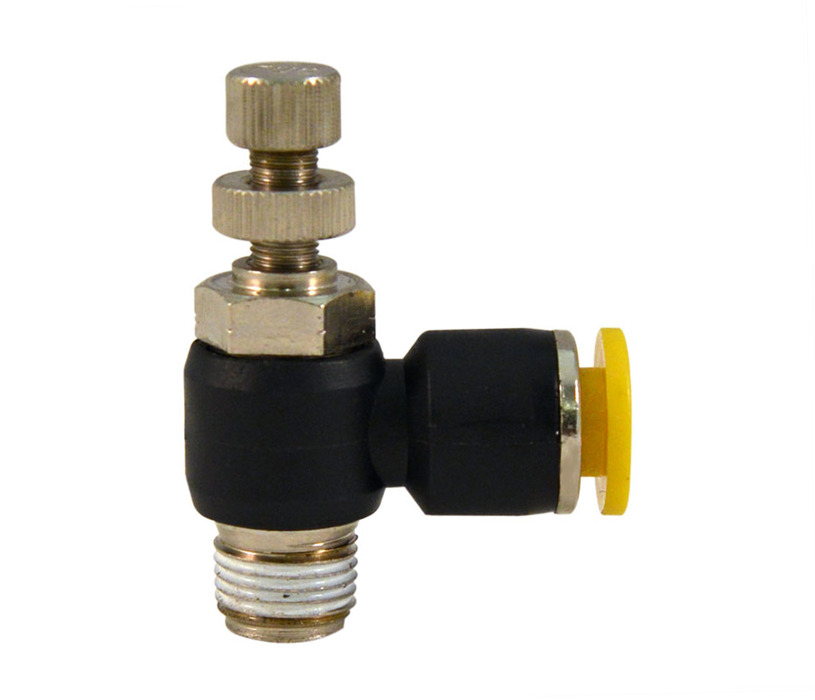

Flow Control Valve, Meter Out from 1/8" NPT to 1/4" OD Tubing
See Catalog: Page 160

Additional Information

AdjustmentKnurled Knob
Air Flow0 to 150 psig
MaterialNickel Plated Brass, Plastic Resin, Stainless Steel Gripper Ring, Nitrile Seal
MediumAir
NoteIdeal for Use with Clippard Polyurethane, Nylon, Polyethylene and Polypropylene Tubing
SealsNitrile
Thread Size1/8" NPT Male Thread
Tubing Size1/4" OD Tubing
TypeRight Angle (Meter Out)
Vacuum0 to 29.5" Hg
