Directional Control Valves

Knowledge Base

Learn More >
Mechanically-operated directional control valves are used to open, change or stop the flow direction of the medium, and have a supply port and several exhaust ports. Clippard offers toggle, stem and hand actuators with #3-56,#10-32, 1/8”, 1/4” NPT ports with an additional variety of push and palm button actuators.

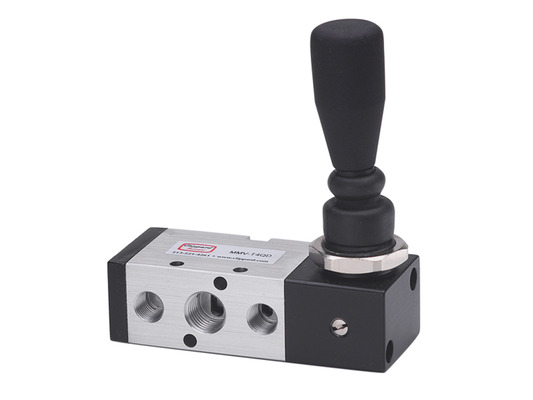

  Hand & Foot Operated Valves
Foot Pedal Valves are 3-Way or 4-Way valves with 1/4" NPT ports. Two versions are offered; either a low-profile flat pedal or a standard pedal with or without guard.

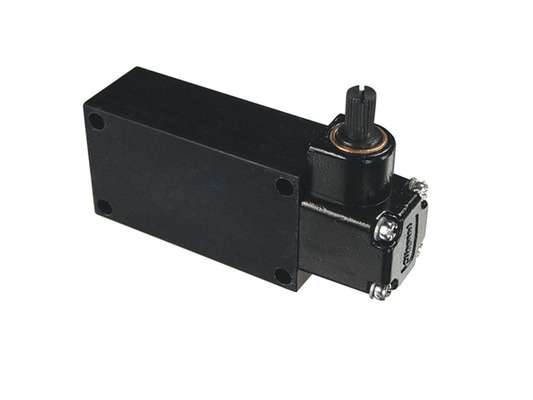

  Limit Valves

  • 2-Way & 3-Way
  • Normally-Open or Normally-Closed

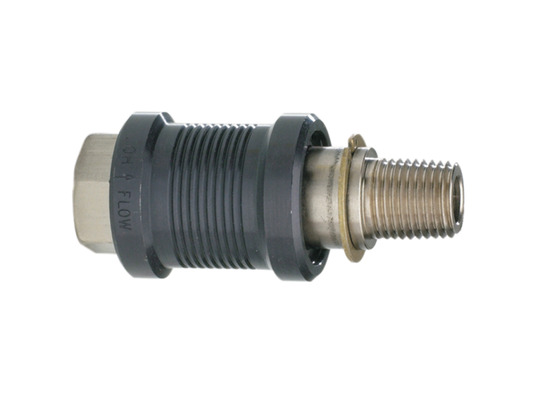

    •   Threaded Sleeve Valves

  • 2-Way & 3-Way
  • #10-32, 1/8" NPT & 1/4 NPT
  • In-Line or Direct Mount
  • Input Pressure of 150 psig (10 bar)
  • ENP Brass Body

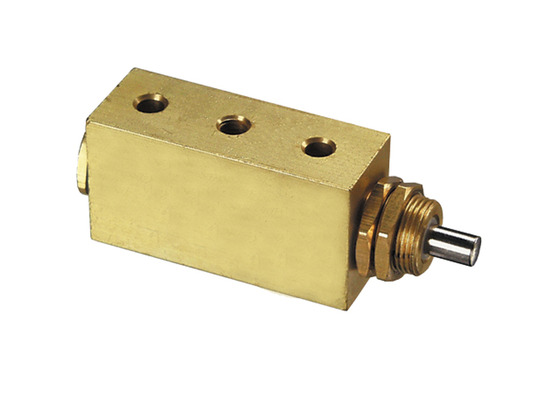

    •   Stem Valves
    • 2-Way, 3-Way, 4-Way & 5-Way
    • Normally-Open or Normally-Closed
    • #3-56, #10-32, 1/8" NPT & 1/4" NPT Ports
    • 15/32-32 Thread Mounting
    • Compatible with a wide range of valve actuators

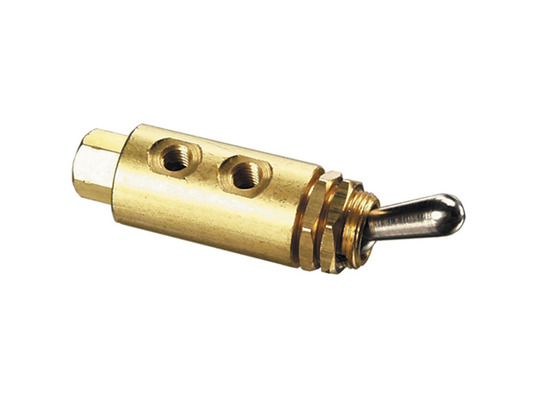

      Toggle Valves
    • 2-Way, 3-Way & 4-Way
    • #3-56, #10-32 & 1/8" NPT Ports
    • Toggle valves have a supply, outlet and exhaust port.
    • Detented or Momentary Actuation
    • Will accept a variety of actuators
    • Flexible & Fast
    • Multiple Material & Mounting Options
      Valve Actuators
    • Push Button Actuators
    • Rollover Cam Actuators

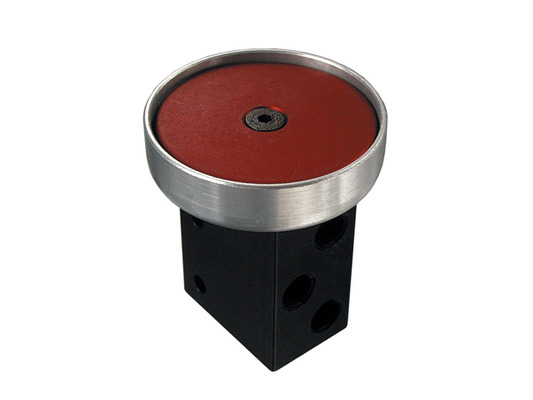

    • Palm Button Valves
      Accessories

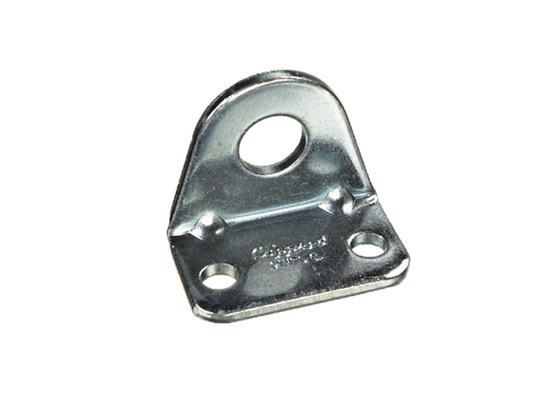

    Lockwashers, springs and foot brackets available.



    To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

    Need help? Contact Us >

    Part No.
    Product Description 1-100 of 279 Page: 1 ->2 3
    0302-32-BLK Lockwasher
    0302-32-PKG Lockwasher, Pack of 10
    11406-2 15/32 Panel Mounting Nut, Nickel
    11916-1 Push Button 1/8"" Diameter Stem
    11916-1-BLK Push Button 1/8"" Diameter Stem
    11916-2-BLK Push Button 3/16"" Diameter Stem
    11916-3-BLK Small Push Button 1/8"" Diameter Stem
    11916-4-BLK Small Push Button 3/16"" Diameter Stem
    11896-BLK Heavy Spring for MJV-3/MJV-2
    11896-PKG Heavy Spring for MJV-3/MJV-2, Pack of 10
    11897-BLK Spring Retainer, MAV-3P
    11897-PKG Spring Retainer, MAV-3P, Pack of 10
    11898-BLK Heavy Spring for MAV-3/ MAV-2
    11898-PKG Heavy Spring for MAV-3/ MAV-2, Pack of 10
    12296 One-Way Double-Pivoted Cam Follower
    15/32-32 Tap
    12600 Head for LVA
    GV-2C 2-Way Stem Cartridge Valve
    MJV-2C 2-Way Stem Cartridge Valve, Normally-Closed
    M-FV-3DP 3-Way Spool Double Plunger 2 Position Valve, G1/8
    M-MJV-2C 2-Way Stem Cartridge Valve, Normally-Closed, Metric
    AR-L Adjustable Roller Arm
    AR-M Adjustable Rod Arm
    M-MJV-3 3-Way Stem Valve, Normally-Closed, G1/8 Ports, Metric
    FBV-3MPF Fill & Bleed Valve, Momentary/Momentary, Full Flow, 1/8" NPT
    M-FV-5D 4-Way Double Plunger Valve, Fully-Ported, M5
    TV-2MFP 2-Way Toggle Valve, N-C, Momentary Open Plastic Toggle, 1/8" NPT Male
    PB-2-RD 3-Way Low Force Actuation Push Button, Red (Green shown)
    M-GV-2 2-Way Stem Valve, G1/4 Ports, Metric
    M-GV-2C 2-Way Stem Cartridge Valve, Metric
    TV-3MFP 3-Way Toggle Valve, N-C, Momentary Open Toggle, Plastic Toggle, 1/8" NPT
    TVO-3MP 3-Way Toggle Valve, N-O, Momentary Closed Toggle, NP Steel Toggle, 1/8" NPT
    FBV-3DMFH Fill & Bleed Valve, Detented/Momentary, Full Flow, #10-32
    FBV-3DFH Fill & Bleed Valve, Detented/Detented, Full Flow, #10-32 Port
    FBV-3DMF Fill & Bleed Valve, Detented/Detented, Full Flow, #10-32
    FBV-3DMPF Fill & Bleed Valve, Detented/Momentary, Full Flow, #10-32
    FBV-3MPFH Fill & Bleed Valve, Momentary/Momentary, Full Flow, 1/8" NPT
    FTV-3F 3-Way Toggle Valve, Plastic Toggle, #10-32
    11916-4 Small Push Button 3/16"" Diameter Stem
    FTV-3FP 3-Way Toggle Valve, Plastic Toggle, 1/8" NPT
    FTV-3P 3-Way Toggle Valve, NP Steel Toggle, 1/8" NPT
    FV-3D 3-Way Spool Double Plunger 2 Position Valve, #10-32
    FV-3DP 3-Way Spool Double Plunger 2 Position Valve, 1/8" NPT
    FV-5D 4-Way Double Plunger Valve, Fully-Ported, #10-32
    FV-4DP 4-Way Double Plunger Valve, 1/8" NPT
    FV-4D 4-Way Double Plunger Valve, #10-32
    FV-3P 3-Way Spool Plunger Actuated Spring Return Valve, 1/8" NPT
    FV-4 4-Way Double Plunger Valve, #10-32
    FV-5DP 4-Way Double Plunger Valve, Fully-Ported, 1/8" NPT
    11925 Roller Cam Follower Actuator
    11916-2 Push Button 3/16"" Diameter Stem
    HV-4C 4-Way Stem Cartridge Valve
    JSLV-2-F4F4 J-Series 2-Way Sleeve Valve, 1/4" Female Inlet, Female Outlet
    JSLV-3-F4F4 J-Series 3-Way Sleeve Valve, 1/4" Female Inlet, Female Outlet
    JSLV-3-F4M4 J-Series 3-Way Sleeve Valve, 1/4" Female Inlet, Male Outlet
    JSLV-3-M4F4 J-Series 3-Way Sleeve Valve, 1/4" Male Inlet, Female Outlet
    LVA-2 Heavy Duty Limit Valve, 2-Way, Normally-Closed
    LVAO-2 Heavy Duty Limit Valve, 2-Way, Normally-Open
    M-FTV-3F 3-Way Toggle Valve, Plastic Toggle, M5
    M-FTV-3FP 3-Way Toggle Valve, Plastic Toggle, G1/8
    M-FTV-3P 3-Way Toggle Valve, NP Steel Toggle, G1/8
    M-FV-3D 3-Way Spool Double Plunger 2 Position Valve, M5
    M-GV-3C 3-Way Stem Cartridge Valve, Metric
    M-MAV-2 2-Way Stem Valve, Normally-Closed, M5
    M-MAV-2C 2-Way Stem Cartridge Valve, Normally-Closed
    M-MAV-2P 2-Way Stem Valve, Normally-Closed, G1/8 Ports, Metric
    M-MAV-3C 3-Way Stem Cartridge Valve, Normally-Closed
    M-MAV-3P 3-Way Stem Valve, Normally-Closed, G1/8 Ports, Metric
    M-MAV-4 4-Way Stem Valve, Spring Return, M5 Ports, Metric
    M-MAVO-3 3-Way Stem Valve, Normally-Open, M5
    M-MAVO-3C 3-Way Stem Cartridge Valve, Normally-Open
    M-MJTV-3 3-Way Toggle Valve, NP Steel Toggle, G1/8
    M-MJTV-4 4-Way Toggle Valve, NP Steel Toggle, G1/8
    M-MJV-4 4-Way Stem Valve, Spring Return, G1/8 Ports, Metric
    M-MJTV-4F 4-Way 2-Position Valve, Plastic Toggle, G1/8
    M-MJTV-5 4-Way Toggle Valve, NP Steel Toggle, G1/8
    M-MJTV-5F 4-Way Toggle Valve, Plastic Toggle, G1/8
    M-MJV-3C 3-Way Stem Cartridge Valve, Normally-Closed, Metric
    M-MJV-4D 4-Way Stem Valve, Double Stem, G1/8 Ports, Metric
    M-MTV-4 4-Way Toggle Valve, NP Steel Toggle, M5
    PB-1-GN 3-Way Palm Button Valve, Green
    PC-3F-YL 16 mm Flush Captivated Push Button, Yellow (Red shown)
    MAV-3 3-Way Stem Valve, Normally-Closed, #10-32
    PC-3M-BK 16 mm Mushroom Captivated Push Button, Black
    MAV-4 4-Way Stem Valve, Spring Return, #10-32 Ports
    MBA-1 Ball Cam Actuator
    MAVO-2 2-Way Stem Valve, Normally-Open, #10-32
    MAVO-3 3-Way Stem Valve, Normally-Open, #10-32
    MAVO-3C 3-Way Stem Cartridge Valve, Normally-Open
    MJV-4D 4-Way Stem Valve, Double Stem, 1/8" NPT Ports
    MJTV-4F 4-Way 2-Position Valve, Plastic Toggle, 1/8" NPT
    MJTV-5 4-Way Toggle Valve, NP Steel Toggle, 1/8" NPT
    MJTV-5F 4-Way Toggle Valve, Plastic Toggle, 1/8" NPT
    MJV-4 4-Way Stem Valve, Spring Return, 1/8" NPT Ports
    MJVO-3C 3-Way Cartridge Valve, Normally-Open
    PC-3M-BL 16 mm Mushroom Captivated Push Button, Blue (Red shown)
    FBV-3DPF Fill & Bleed Valve, Detented/Detented, Full Flow, 1/8" NPT
    JSLV-2-F2M2 J-Series 2-Way Sleeve Valve, 1/8" Female Inlet, Male Outlet
    JSLV-2-M4F4 J-Series 2-Way Sleeve Valve, 1/4" Male Inlet, Female Outlet
    MAVO-2P 2-Way Stem Valve Normally Passing, 1/8" NPT Input, #10-32 Output
