PB-2-RD

   Product will ship within 1 to 2 business days
PB-2-RD

More Views

Get CAD files:

Details

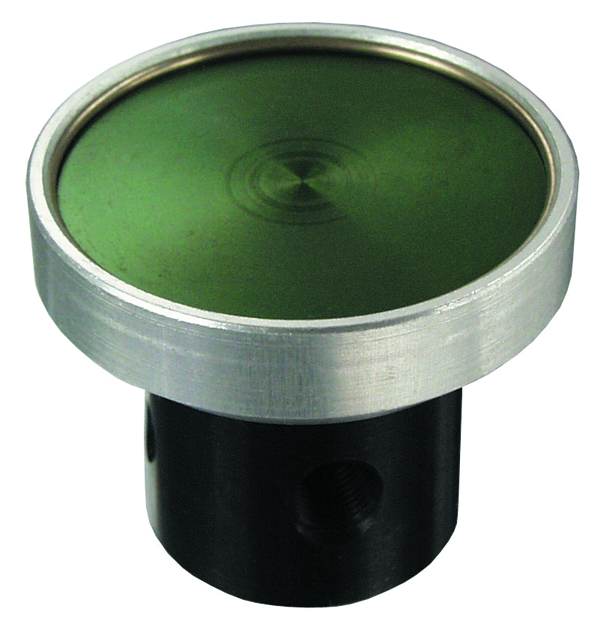

3-Way Low Force Actuation Push Button, Red (Green shown)

Notes

Valve available with anodized color buttons.
See Catalog: Page 132

Uses

3-Way low force Poppet Valve; Normally-Closed; depressing button blocks the sensing port causing rapid valve opening.

Additional Information

Air Flow620 l/min @ 100 psig
Bleed0.1 scfm @ 100 psig
Force1 oz manual
Input PSI100 psig max.
Max PSI30 to 100 psig
MediumAir
MountMounting holes provided; optional Bracket Kit (2010-50) provides additional mounting versatility.
Ports1/8" NPT
Temperature Range32 to 230 F
