GV-3-P12

   Product will ship within 1 to 2 business days
GV-3-P12

More Views

Get CAD files:

Details

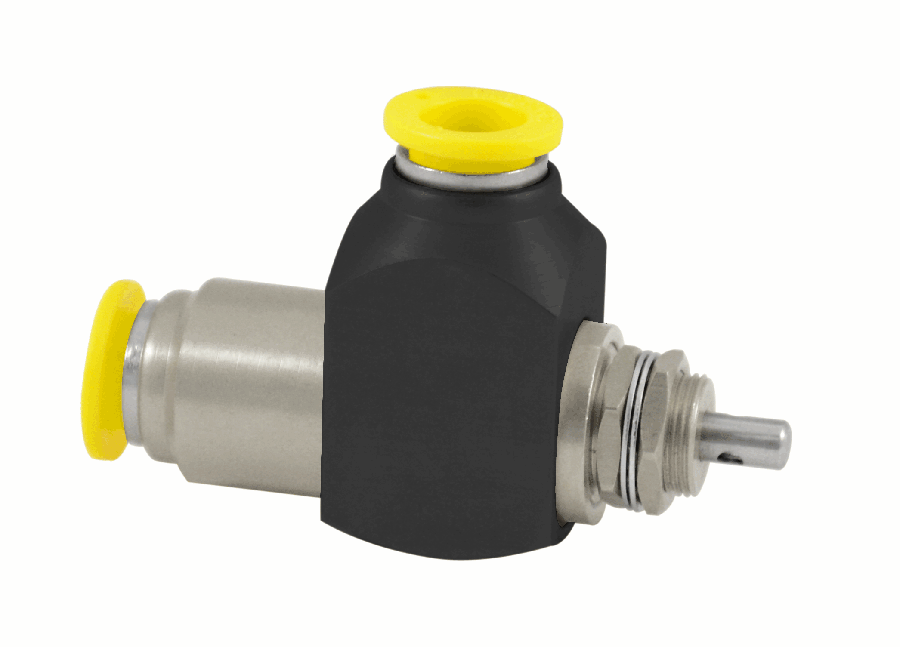

3-Way Stem Valve, 3/8" Push-Quick Fittings

Notes

Stem Travel: 1/8"
See Catalog: Page 123

Additional Information

ActuationStem
Air Flow38 scfm @ 50 psig; 67 scfm @ 100 psig
Force for Full Stem Travel9 lb. nominal @ 100 psig (4 kg @ 7 bar)
Function3-Way
Inlet Port3/8" PQ Fitting
Input Pressure150 psig max.
Medium2-Way: Air, Water or Oil; 3-Way: Air
MountStandard
Outlet Port3/8" PQ Fitting
SealsNitrile Standard, FKM Optional
SeriesStandard
StemStainless Steel
Stem Travel1/8" (3.2 mm)
Temperature Range32 to 230°F (0 to 110°C)
ToggleElectroless Nickel-Plated Steel
UnitImperial
