Check Valves

  Clippard Check Valves

#10-32 Valves

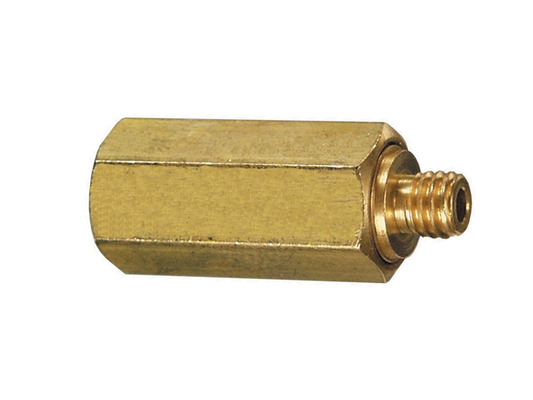

    MCV Series Valves






MCV Check Valves permit flow in one direction only. Each has bright-dipped brass bodies that provide in-line mounting, Buna-N seals and stainless steel springs as standard.  The MCV-2 has #10-32 ports and a "duckbill" seal. The MCV-1 series has #10-32 ports and a brass poppet.

Miniature #10-32 Threaded Ports
• 2-Way, 3-Way & 4-Way Ported Valves
• 0.5 psig cracking pressure
• 280 lpm with 100 psig
• Air or hydraulic applications
• Multiple porting options in #10-32
• Maximum pressure: 300 psig

1/8" NPT Valves
    MJCV Series Valves



Same features as above, the [part:MJCV-1] series has 1/8" NPT or G1/8 ports and a Zytel 80G33 poppet.

Miniature 1/8" NPT Threaded Ports
• 2-Way, 3-Way & 4-Way Ported Valves
• Robust and miniature
• Up to 1,000 psig hydraulic
• Up to 300 psig pneumatic
• 580 lpm with 100 psig


1/4" NPT & 3/8" NPT Valves
    GCV Series Valves



Same features as above, the GCV series have 1/4" NPT, G14, 3/8" NPT or G3/8 ports.

Miniature 1/4" NPT, G14, 3/8" NPT or G3/8 Threaded Ports
• 2-Way, 3-Way & 4-Way Ported Valves
• Robust and miniature
• Up to 1,000 psig hydraulic
• Up to 300 psig pneumatic
• 580 lpm with 100 psig


Pilot-Operated Series

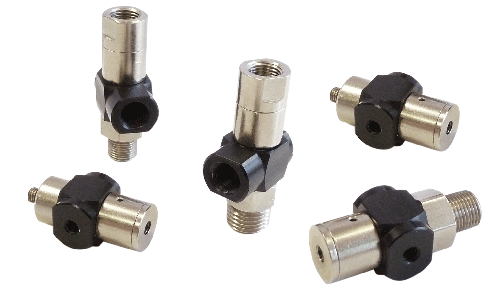

    JPC Series Valves



  Pilot-Operated Check Valves work as standard check valves, but can be opened with an air pilot signal to permit free flow in the normally  “checked” direction. The Clippard Pilot-Operated Check Valve provides the user with a reliable method to check flow in one direction, with the ability to remotely signal a free flow through the valve. Ideal for any circuit that requires this useful function—all in one valve that is easy to connect!

Miniature #10-32 or 1/8" NPT Threaded Ports
• High flow valve means low pressure drop
• Uses Clippard's superior poppet design
• Variety of port conifigurations available
• Side port (port 2) rotates for ease positioning
• "Auxiliary" port allows ease of plumbing
