R-341

   Product will ship within 5 business days
R-341

More Views

Get CAD files:

Details

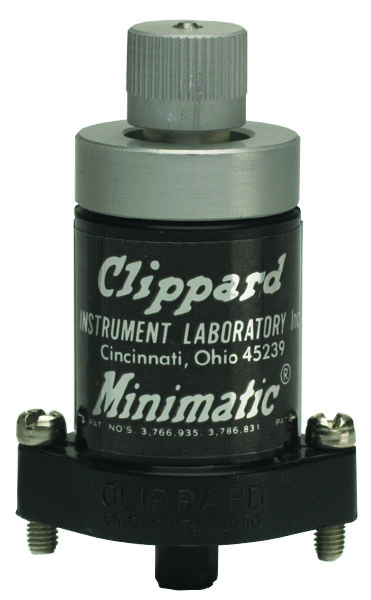

3-Way Delay Out, Spring Return, Fully-Ported Valve

Notes

Minimum pressure is 40 psig
See Catalog: Page 268

Uses

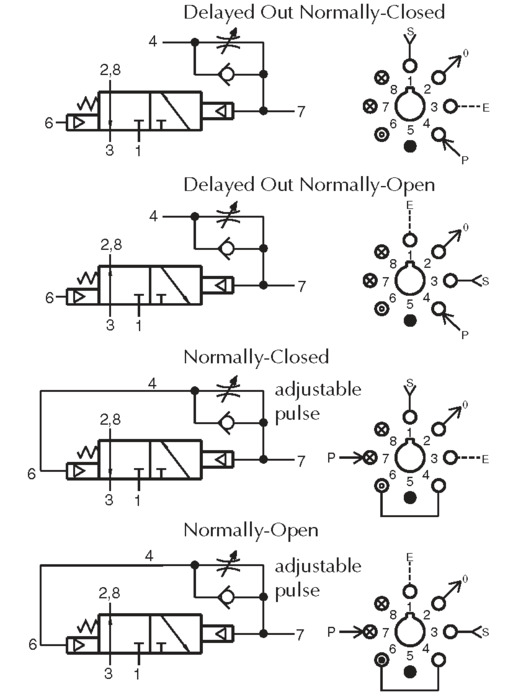

R-341 and R-343 are dual element combinations consisting of a fully ported spring return, 3-way valve and an adjustable flow control to provide a delay

Additional Information

Air Flow250 l/min @ 100 psig
Max PSI150 psig
Temperature Range32 to 180°F
