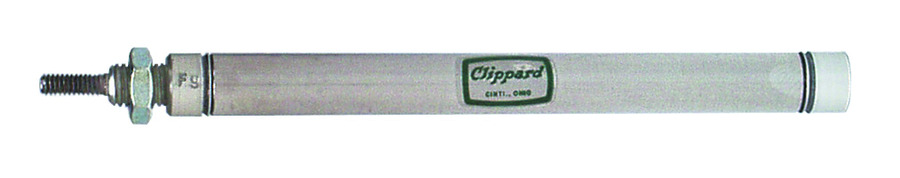

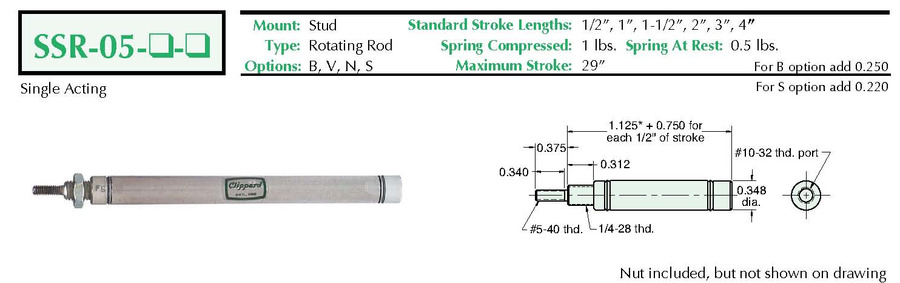

5/16" S/S Cylinder, Stud Mount, Rotating Rod
See Catalog: Page 10

Additional Information

Bore5/16"
Cushion TypeNone
Cylinder Head AnodizingNo Anodizing
Cylinder TypeSingle Acting (S)
Extra Rod ExtensionAvailable from your local distributor.
Length3" (76 mm) (tip-to-tip)
Length, Cylinder2.625" (67 mm)
Length, Rod (exposed)0.375" (10 mm)
Length, Rod Thread0.340" (9 mm)
LubricantSilicone-Based Lube
Magnetic PistonNo
Materials, BushingSintered Bronze
Materials, End CapsAluminum with No Anodizing
Materials, Rod303 Stainless Steel
Materials, Tube304 Stainless Steel
Mount Front Stud (S)
Port Thread#10-32UNF
Pressure, Max250 psi
Rear PortStandard Rear Port
Rod ClevisRC-0581
Rod EndRE-0585
Rod NutN02-40
Rod Thread#5-40
Rod TypeStandard (R)
Rotated PortsStandard Ports
Seal MaterialNitrile
Spring Force, Compressed1.0 lbs. +/- 10%
Spring Force, Rest0.5 lbs. +/- 10%
Stroke1"
Stud NutN04-28B (included)
Temperature, Max230 °F (110 °C)
Temperature, Min-20 °F (-29 °C)
