9PS-3/4

More Views

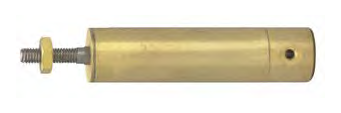

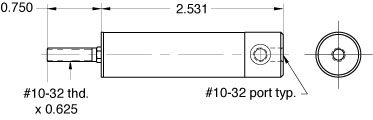

9PS-3/4

Obsolete-9/16” Single Acting, Plain End, Spring Return Cylinder, 3/4"
Clippard has divested our cylinder product lines to Compact Automation. Click here to learn more.

To continue ordering the same cylinders you have ordered in the past, please click here to locate your nearest Clippard distributor.
ActionSpring Return, Air Extend
Bore0.5625
Max PSI125 PSI
MediumAir
MountPlain End
Ports10-32 Thread
Power Factor0.22
RodRotating Rod
Rod Diameter0.1875
Spring Force (extended)3.7 lb
Spring Force (retracted)1.6 lb
Stroke0.7500
Temperature Range30 to 230°F
Weight0.1800
Get CAD files:
