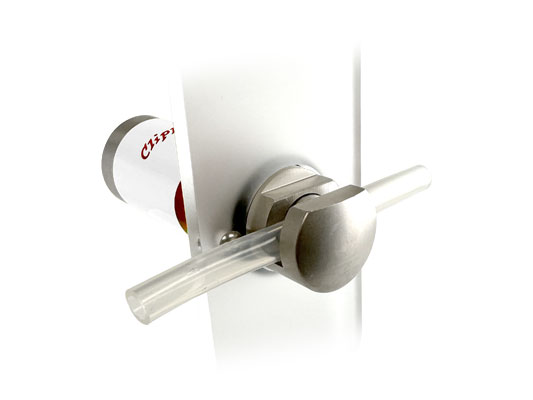

NPV7-1CP-06-24

Clippard’s high flow pinch valve provides the same functionality as the standard series but with the added benefits of a longer stroke. This makes it ideal for applications that require greater flow or those that utilize viscous or particulate-laden media. As with all Clippard pinch valves, each valve comes pre-installed with 12” (30 cm) of your choice of standard medical/laboratory grade or sanitary food grade silicone tubing.
call for lead time
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.
  • Unobstructed flow path
  • Each valve comes with 12" (30 cm) of silicone tubing pre-installed
  • Tubing is easily replaceable
  • Higher flow
  • Longer stroke

Applications

  • Medical and analytical testing
  • Dialysis
  • Blood analysis and processing
  • Peptide synthesis
  • DNA synthesis
  • Bioreactors
  • Bioprocessing
  • Inkjet printing
  • Liquid and gas chromatography
  • Drug manufacturing
  • Chemical processing
  • Controlling the flow of chemical liquids and slurries
  • Waste and wastewater treatment
  • Precision control of chemical injections
  • Food processing
  • Pulp processing
  • Handling abrasive or viscous fluids
2D DrawingsFile
Applications FormApplications Form
Connection18" (45 cm) Wire Leads
Data SheetData Sheet
DocumentationIEC, RoHs
Function2-Way Normally-Closed
Length4.570" (116.1 mm)
Material, BodyStainless Steel and Aluminum (ENP)
Material, TubeSilicone
Max psi20 psi (1.4 bar)
MediumAir, Water, Gas, or Compatible Fluids
MountPanel
Operating Pressure0 to 20 psig (0 to 1.4 bar) with standard medical/laboratory grade silicone tubing
Operating Temperature Range-20 to 158°F (-29 to 70°C)
Response Time50 ms
Silicone TubingMedical/Laboratory Grade
Thread Depth#2-56 (max. 0.094")
Tubing (mm)3/16" (4.8) ID-5/16" (7.9) OD
Tubing, Durometer Hardness50 Shore A
Tubing, Elongation at Break815%
Tubing, Modulus at 200%299 psi (21 bar)
Tubing, Tear Strength263 ppi
Tubing, Tensile Strength at Break1,388 ppi
Tubing, Wall Thickness1/16" (1.6 mm)
Voltage24 VDC
Wattage72 Watts
Weight0.21
