VA-033

Back Pressure Sensing with Double-Acting Cylinder, External Power Valve
Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

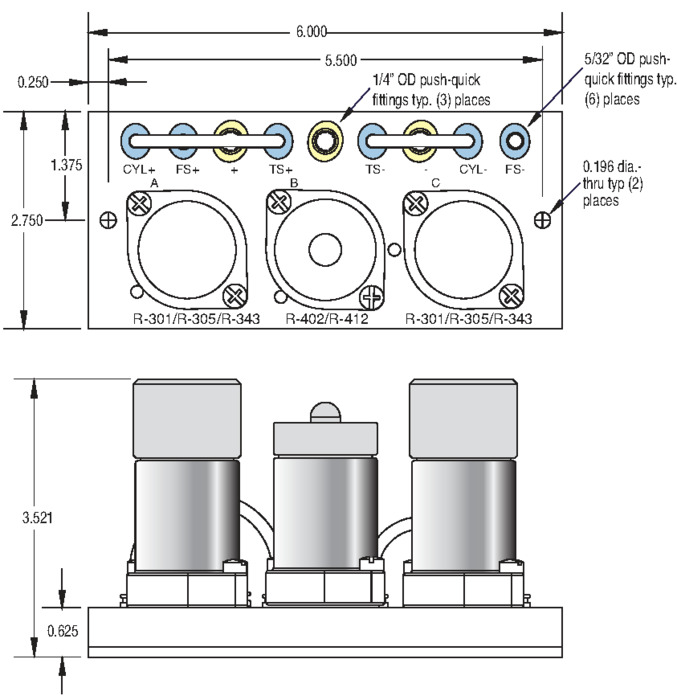

Length6.000
Max PSI40 to 150 psig
Temperature Range32 to 140°F
Weight0.21
Get CAD files:

Notes

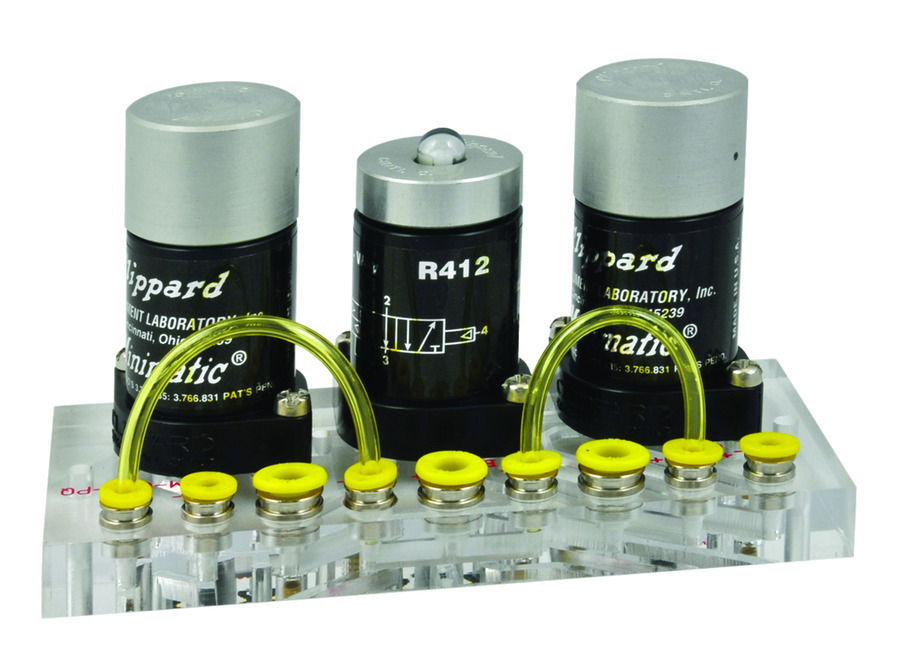

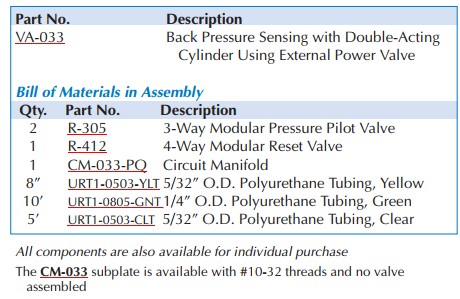

Includes two R-305 & one R-412 Valves, one CM-033-PQ Manifold & Tubing

Uses

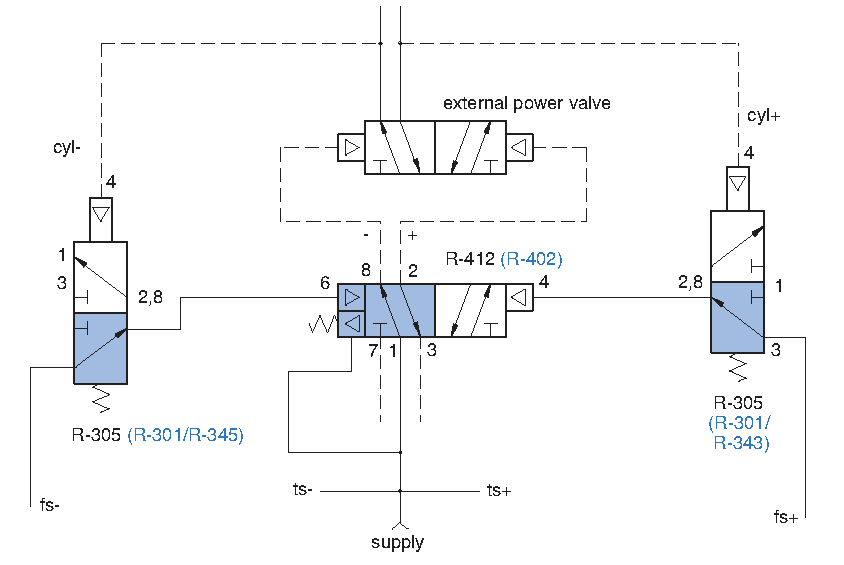

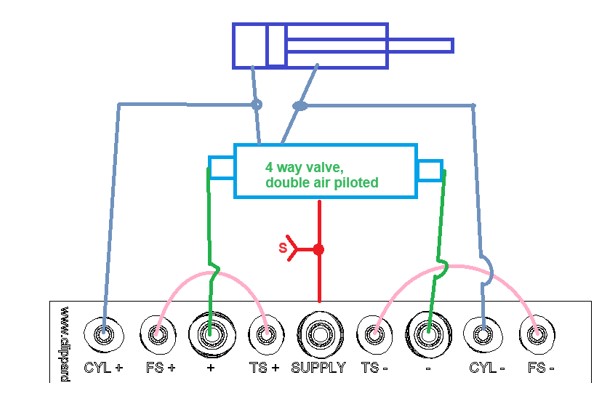

The VA-033 module is very similar to the VA-031 for controlling a double-acting cylinder without limits. The circuit uses back pressure to send a signal when the cylinder finishes moving.
