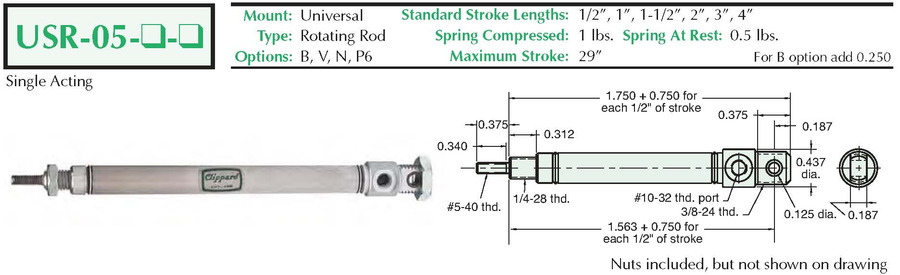

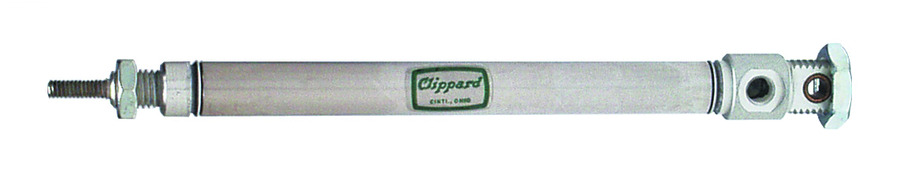

5/16" S/S Cylinder, Universal Mount, Rotating Rod
See Catalog: Page 10

Additional Information

Bore5/16"
Clevis Bracket SkuCB-0595
Cushion TypeNone
Cylinder Head AnodizingNo Anodizing
Cylinder TypeSingle Acting (S)
Extra Rod ExtensionAvailable from your local distributor.
Length2.875" (73 mm) (tip-to-tip)
Length, Cylinder2.5" (64 mm)
Length, Pivot to rod thread2.348
Length, Rod (exposed)0.375" (10 mm)
Length, Rod Thread0.340" (9 mm)
LubricantSilicone-Based Lube
Magnetic PistonNo
Materials, BushingSintered Bronze
Materials, End CapsAluminum with No Anodizing
Materials, Rod303 Stainless Steel
Materials, Tube304 Stainless Steel
MountUniversal (U)
Port Thread#10-32UNF
Pressure, Max250 psi
Rear PortStandard Rear Port
Rod ClevisRC-0581
Rod EndRE-0585
Rod NutN02-40
Rod Thread#5-40
Rod TypeStandard (R)
Rotated PortsStandard Ports
Seal MaterialNitrile
Spring Force, Compressed1.0 lbs. +/- 10%
Spring Force, Rest0.5 lbs. +/- 10%
Stroke1/2
Stud NutN04-28B (included)
Temperature, Max230 °F (110 °C)
Temperature, Min-20 °F (-29 °C)
