TV-4D

More Views

TV-4D

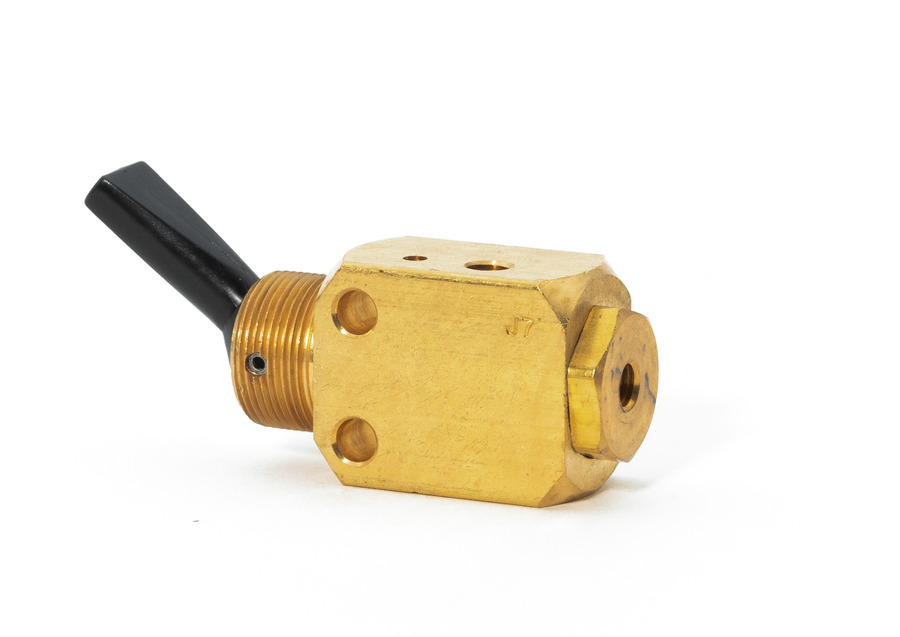

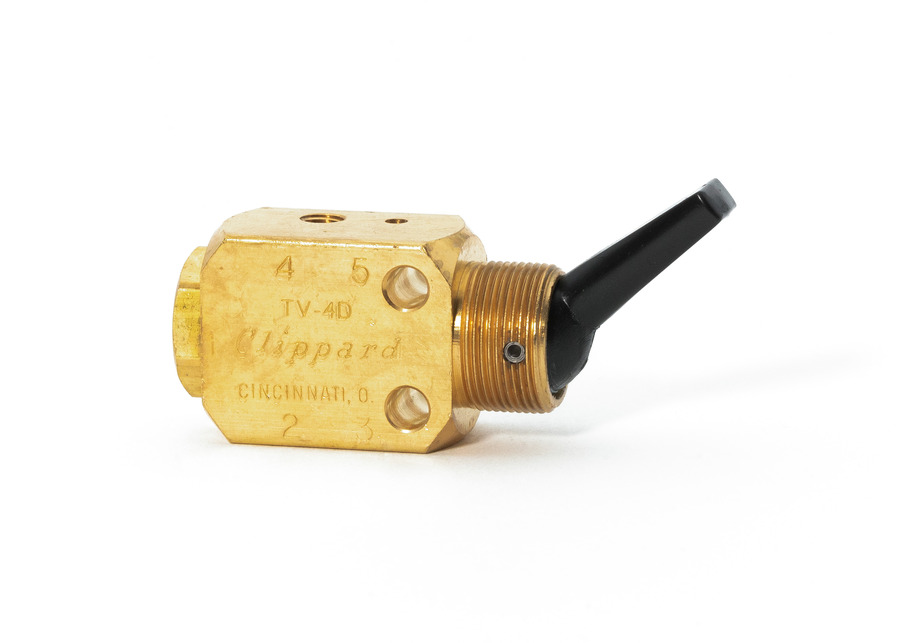

4-Way 3-position toggle valves with outlet ports open to atmoshere in the center position. The valve can be spring center, 3-position detent or the "DM" provides a detent on one side and spring return on the other side. The TV-DM model can be used on the momentary side as a "jog" or manual control, and with the detented side for an automatic or "run" mode.
call for lead time
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Reach out to your local distributor for application support and specialized pricing.

  • Detented & Momentary models available
  • #10-32 & 1/8" NPT styles

    • ActuationDetented/Detented

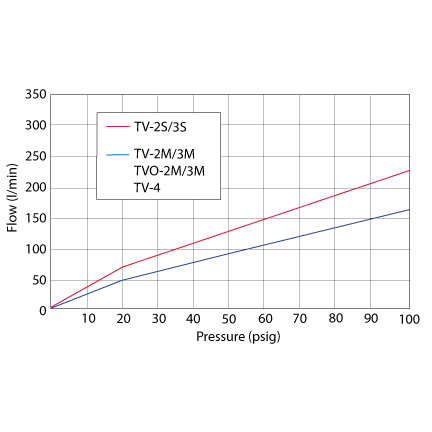

    Air Flow125 l/min @ 50 psig; 210 l/min @ 100 psig
    Force to Rotate Toggle8 oz. nominal
    Included Item(s)Nut & Lockwashers
    Input PSI150 psig max.
    Material, BodyBrass
    Material, SpringStainless Steel
    Material, TogglePlastic
    Max PSI120 psig
    MediumAir

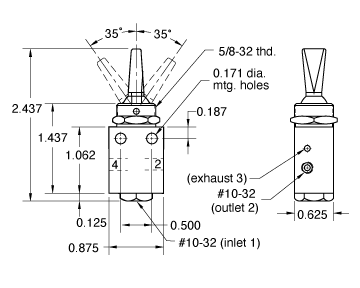

    Mount#5/8-32 thread
    Port#10-32
    Product Line BrochureMechanical Valves
    SealsNitrile Std., FKM & Krytox Optional
    UnitImperial
    Weight (lbs.)0.1800
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    Brass body, Nitrile seals, Stainless Steel spring

    Uses

    Designed for use with Clippard manual, air-pilot, electric or mechanical actuators.
