TV-3SF

   Product will ship within 1 to 2 business days
TV-3SF

More Views

Get CAD files:

Details

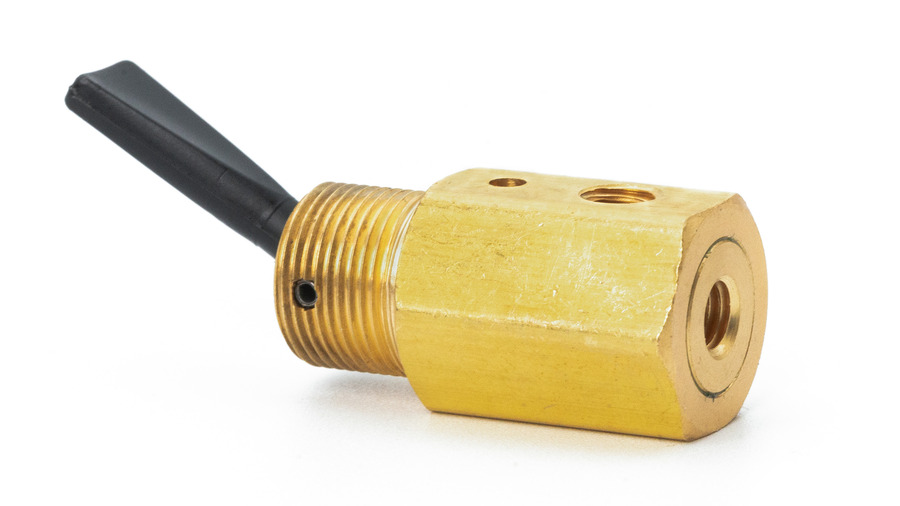

3-Way Toggle Valve, N-C, Plastic Toggle, #10-32
See Catalog: Page 115

Additional Information

ActuationDetented
Air Flow4.5 scfm @ 50 psig; 8 scfm @ 100 psig
Force to Rotate Toggle1.0 oz. Nominal
Function3-Way
Input psig150 psig max.
MediumAir, Water or Oil

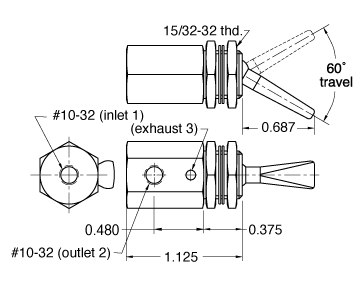

Mount15/32-32 thread. Nut & Lockwashers furnished.
Nut SuppliedYes
PortingNormally-Closed
Ports#10-32
SealsNitrile
Stem Travel1/8"
StyleSpool
Temperature Range32 to 230°F
Thread#10-32 Female
Toggle StylePlastic
Travel Arc60
