TV-2SFP

   Product will ship within 1 to 2 business days
TV-2SFP

More Views

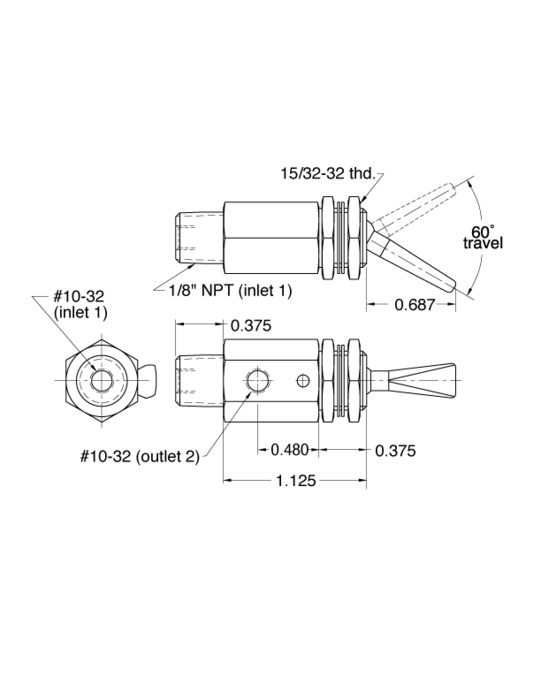

Get CAD files:

Details

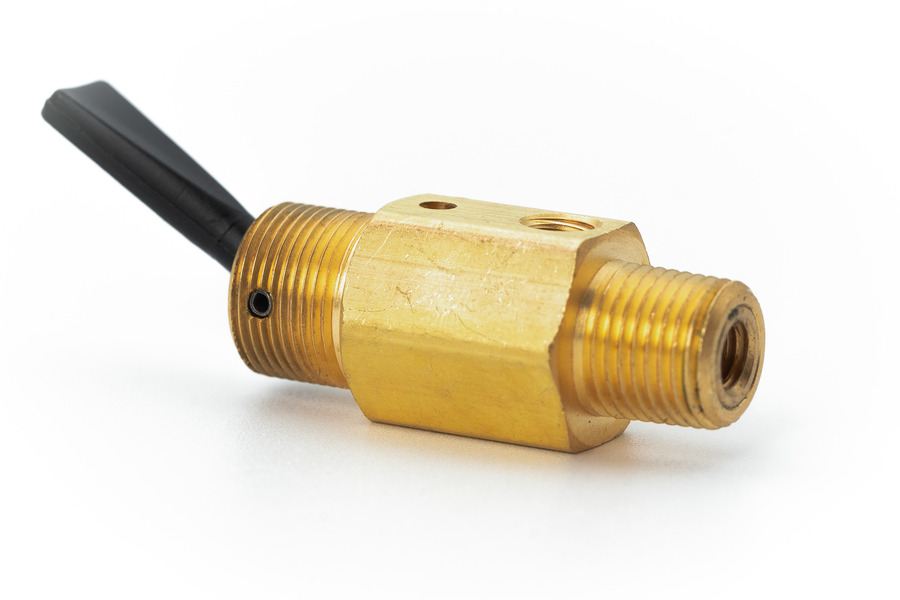

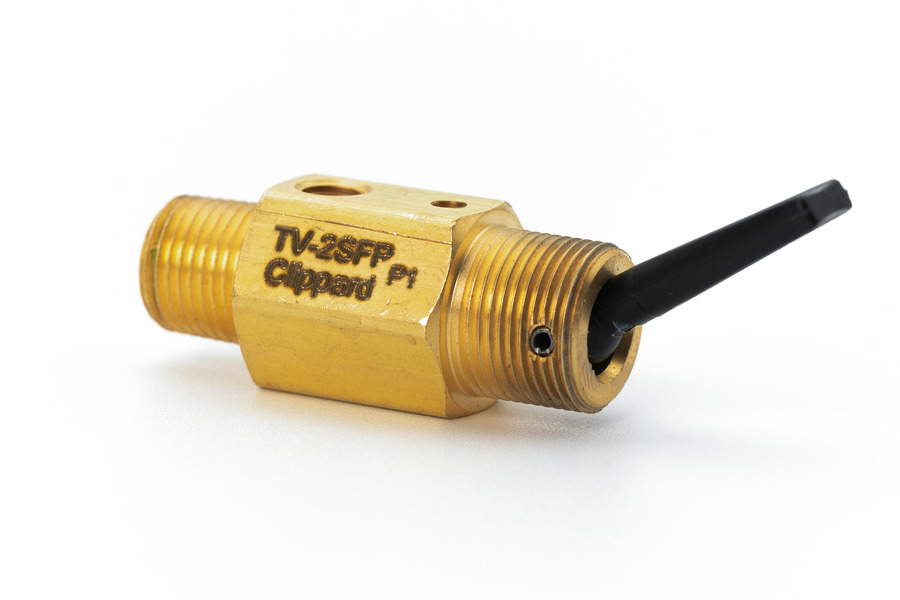

2-Way Toggle Valve, Plastic Toggle, 1/8" NPT Male
See Catalog: Page 115

Additional Information

ActuationDetented
Air Flow95 l/min @ 50 psig, 160 l/min @ 100 psig
DocumentationCA Prop. 65
Force to Rotate Toggle12 oz. nominal
Function2-Way
Input PSI150 psig max.
Input psig150 psig max.
MediumAir, Water or Oil
Mount15/32-32 thread. Nut/lockwashers furnished.
Nut SuppliedNuts & Lockwashers Furnished
PortingNormally-Closed
Ports1/8" NPT
SealsNitrile
SealsNitrile
Temperature Range32 to 230°F
Toggle StylePlastic
