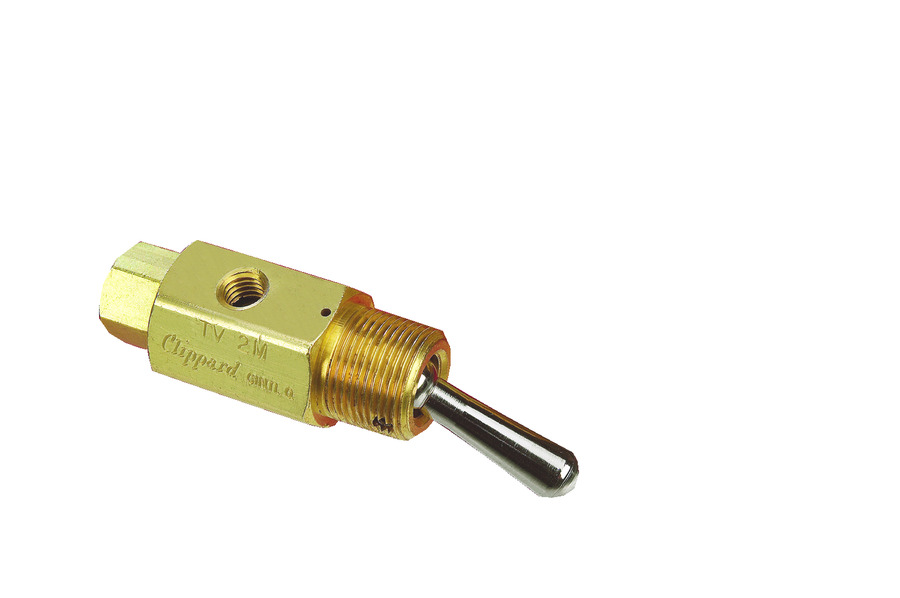

TV-2M

More Views

TV-2M

The function of a 2-Way valve is to turn an air supply on and off. In the "on" position, medium flows from the inlet to the outlet, and in the "off" position, the flow is blocked. 3-Way styles have an exhaust port which vents the outlet to the atmosphere. Available with #10-32 and 1/8" NPT ports.
Estimated to ship within 10 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Miniature #10-32 or 1/8" NPT Threaded Ports
  • 2-Way, 3-Way, 4-Way 2-Position Spool & Poppet Valves
  • Normally-Open or Normally-Closed
  • Brass Body, Nitrile Seals, Stainless Steel Stem & Spring
  • Steel or Plastic Toggles
  • Medium: Air, Water or Oil

  • ActuationMomentary
    Air Flow95 l/min @ 50 psig, 160 l/min @ 100 psig
    Force to Rotate Toggle12 oz. nominal
    Function2-Way Normally-Closed
    Included ItemsNuts & Lockwashers
    Input PSI150 psig max.
    Material, BodyBrass
    Material, SealsNitrile Std., FKM & Krytox Optional
    Material, SpringStainless Steel Stem & Spring
    Material, ToggleNickel-Plated Steel
    MediumAir, Water or Oil

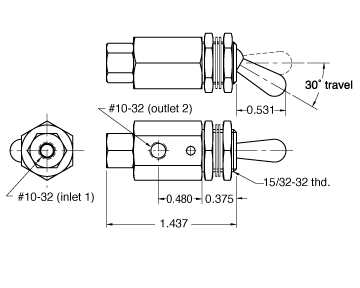

    Mount15/32-32 thread. Nut/lockwashers furnished.
    Operating Pressure150 psig (10 bar) max.
    Operating Temperature Range32 to 230°F
    Ports#10-32
    StyleToggle
    Weight0.1000
