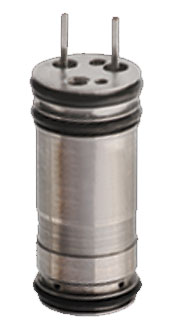

ST-3C-24-10-V

More Views

ST-3C-24-10-V

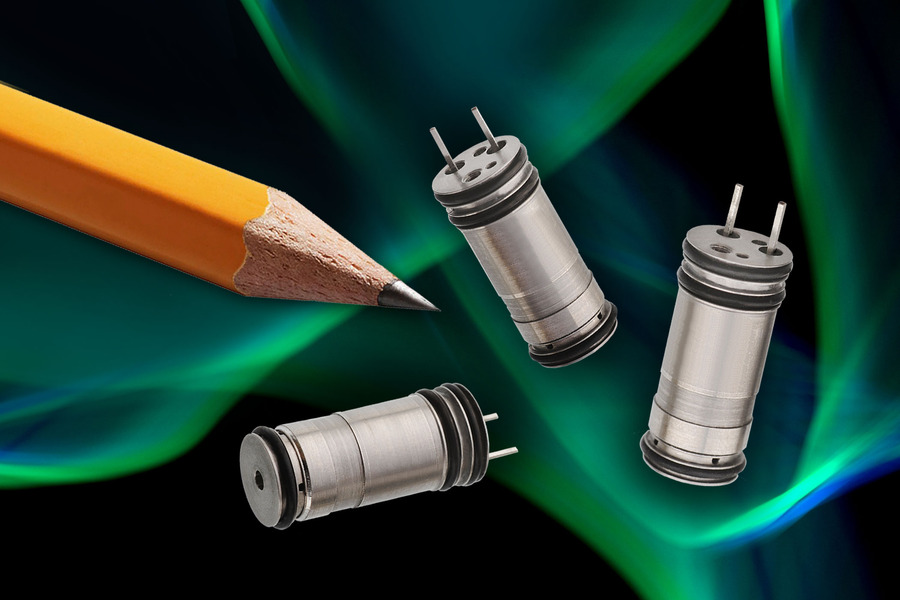

These 8 mm 3-Way direct actuating valves offer an extremely fast response time for accurate dosing of minute volumes with the same long life you expect from the original Clippard EV line of electronic valves, now in a 8 mm cartridge package. The valve was designed with a unique patented valving principle using Clippard's robust stainless steel "spider", with only one moving part that travels less than 0.007".

Due to very low moving weights, they are extremely quiet and emit very low vibration. Subminiature size and low energy consumption make them ideal for transportable and mobile systems, among others.

Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Operating Pressure: 0 to 29 psig; 0 to 145 psig
  • 1,000,000,000+ cycle life
  • Extremely small dead volume
  • Low vibration & noise
  • Fast response time
  • Exceptional repeatability & reliability
  • Compact & ideal for sub-assemblies
  • 100% tested

  • AccessoriesSingle Station Manifold STM-01 (#10-32), M-STM-01 (M5)
    Approx. Weight0.0003
    ConnectionTerminal Pins
    Data SheetData Sheet
    Function3-Way Fully-Ported
    Material, SealsFKM
    Material, WettedStainless Steel
    Max PSI29 to 150 psig
    MediumAir, Water, Gas, Fluids
    MountCartridge
    Operating Pressure0 to 29 psig (0.039" Orifice)
    Operating Temperature Range32 to 122°F
    Response Time<5 ms
    SealsFKM
    Voltage24 VDC
    Wattage0.55 Watts
    Weight0.0003
    Get CAD files:

    Notes

    Stainless Steel, HNBR External O-Ring
