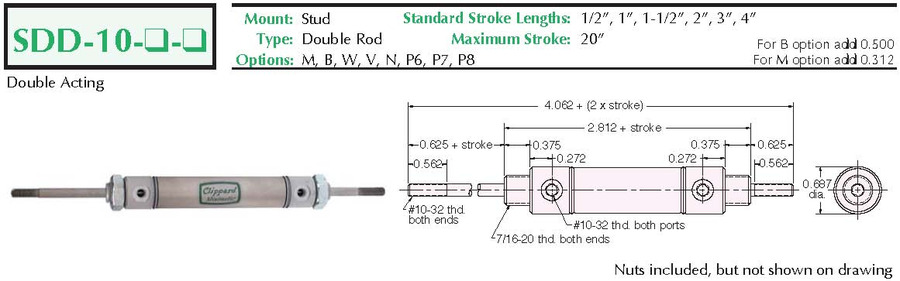

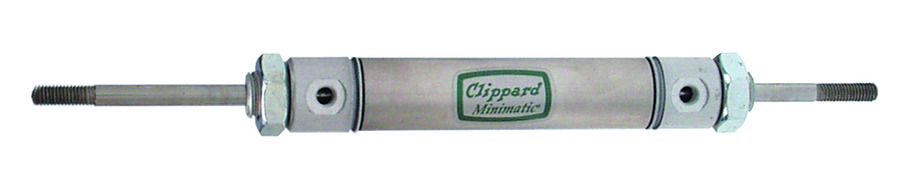

5/8" Bore S/S Cylinder, Stud Mount, Double Rod
See Catalog: Page 22

Additional Information

Clevis BracketCB-0895
Cushion TypeNone
Cylinder Head AnodizingNo Anodizing
Cylinder TypeDouble-Acting (D)
Extra Rod ExtensionAvailable from your local distributor.
Length6.062" (154 mm) (tip-to-tip)
Length, Cylinder3.812" (97 mm)
Length, Rod (exposed)0.625" + 1.625"
Length, Rod Thread0.562" + 0.562"
LubricationSilicone-Based Lube
Magnetic PistonNo
Material, BushingSintered Bronze
Material, Rod303 Stainless Steel
Material, Tube304 Stainless Steel
Materials, End CapsAluminum with No Anodizing
MountFront Stud (S)
Port Thread#10-32
Pressure, Max250 psi
Rear PortStandard Rear Port
Rod ClevisRC-0881
Rod EndRE-0885
Rod NutN03-32
Rod Thread Dia.#10-32 (Standard)
Rod TypeDouble End (D)
Rod WipersNo
Rotated PortsStandard Ports
Seal MaterialNitrile
Stud NutN07-20 (included)
Temperature, Max230 °F (110 °C)
Temperature, Min-20 °F (-29 °C)
