PB-1-RD

   Product will ship within 5 business days
PB-1-RD

More Views

Get CAD files:

Details

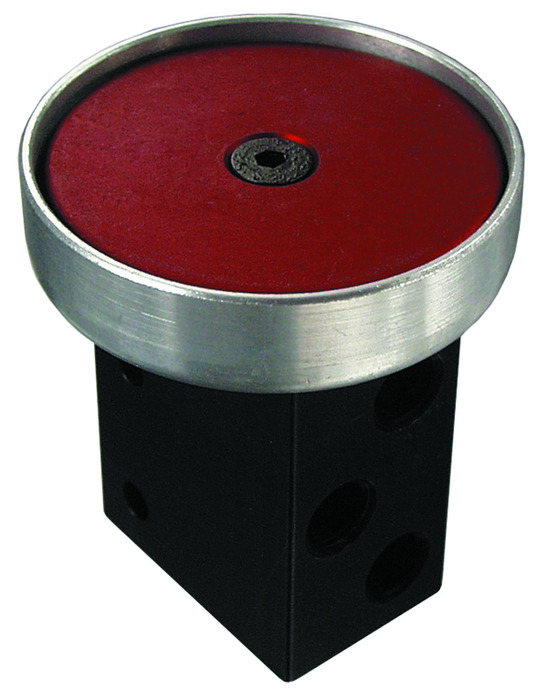

3-Way Palm Button Valve, Red

Notes

3-Way Poppet (MAV-3C) Normally-Closed - bubble tight poppet cartridge valve (- replaceable cartridge). Valve available with anodized color buttons.
See Catalog: Page 132

Additional Information

Air Flow6.0 scfm @ 100 psig; 3.5 scfm @ 150 psig
Force1.75 lb. Manual
Input PSI100 psig max.
Max PSI150 psig
MediumAir
MountMounting holes provided; optional Bracket Kit (12959) provides additional mounting versatility.
Ports1/8" NPT (exhaust may be muffled or piped away but NOT restricted
Stem Travel1/8"
Temperature Range32 to 230 F
