O-EC-2-24

   Product will ship within 5 business days
O-EC-2-24

More Views

Details

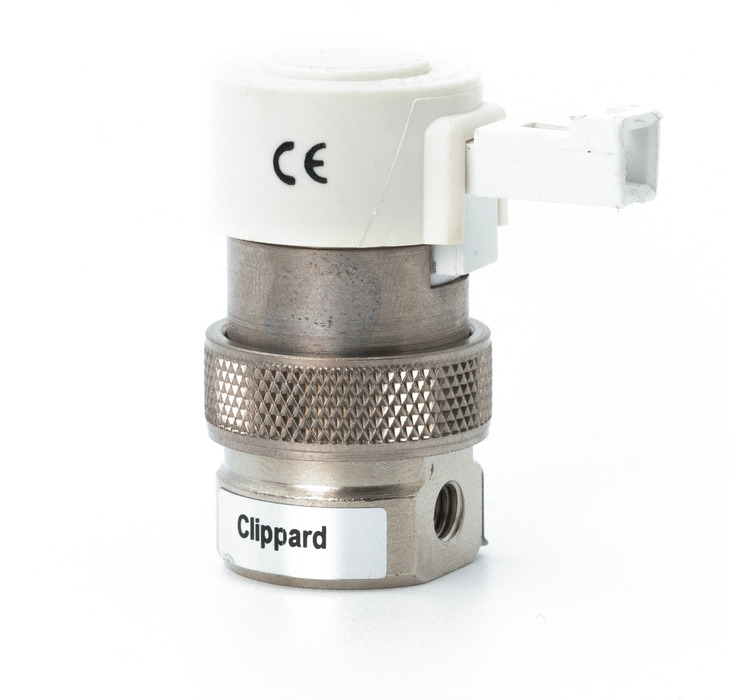

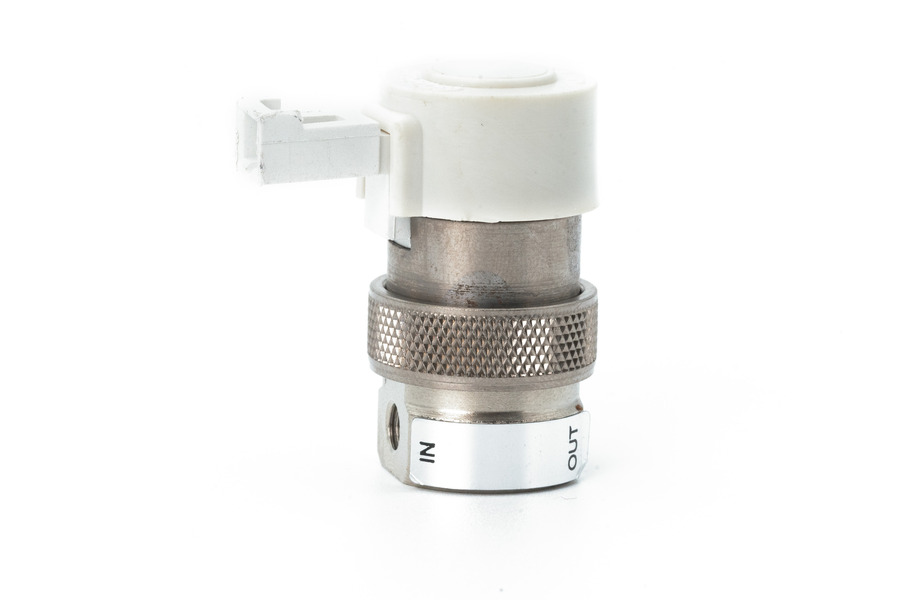

2-Way Elec. Valve, N-C, In-Line Mount, Pin Connector, 24 VDC, Oxygen
See Catalog: Page 183

Additional Information

Available SealsFKM Standard, Nitrile, EPR & Silicone Available
Connection0.025" Square Pin Connector
ConnectorAMP #103959-1
Connector P/NC2-RB18
CyclesOver 1 Billion
DocumentationCA Prop. 65
Flow17 l/min @ 100 psig (17 l/min @ 7 bar)
Function2-Way Normally-Closed
MaterialNickel Plated Brass Body & Core (CR-: Stainless Steel Core)
MediumClean, Dry Air (40 micron filter)
MountStandard In-Line Mount
Mounting#6-32 thd. Mounting Holes
Poppet Travel0.007"
Ports#10-32 Female In-Line Ports
Power Consumption0.67 Watts
Pressure Range28" Hg Vac. to 105 psig
Response Time5 to 10 milliseconds (nominal) @ 25 psig
SealsFKM (O2 Clean)
SeriesOxygen Clean
Voltage24 VDC
