MTV-4F

   Product will ship within 5 business days
MTV-4F

More Views

Get CAD files:

Details

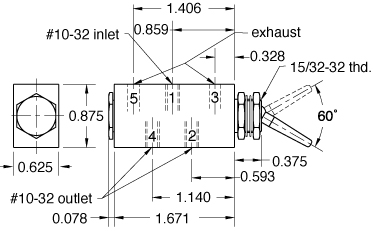

4-Way Toggle Valve, Plastic Toggle, #10-32

Notes

Plastic Toggle
See Catalog: Page 116

Additional Information

Air Flow6 scfm @ 50 psig; 10 scfm @ 100 psig
ExhaustTo atmosphere through holes in body
Force12 oz. Nominal
Function4-Way
GasketNut & Lockwashers furnished.
Inlet / Outlet#10-32 - #10-32
Input PSI150 psig max.
Material, BodyBrass
Material, SpringStainless Steel Stem & Spring
Max PSI150 psig / 10 bar max.
MediumAir, Water or Oil
Mount15/32-32 thread. Nuts and lockwashers furnished.
SealsOptional FKM seals available for high temperature applications.
Stem Travel1/8"
Temperature Range32 to 230°F
Thread#10-32
Toggle MaterialPlastic
Travel Arc60
UnitImperial
