MPS-2P

Sorry, this part is not available online.
Contact your nearest distributor for pricing.
MPS-2P

More Views

Details

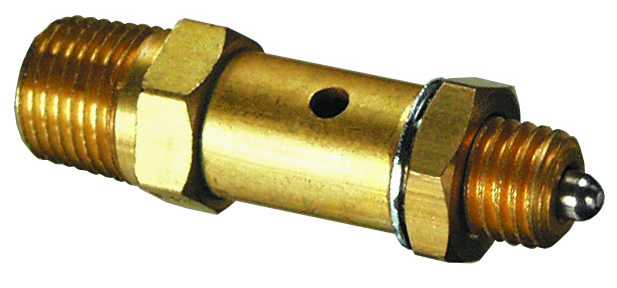

Normally-Closed, 2-Way Poppet Valve with Pilot Sensor, #10-32

Notes

3.5 scfm @ 100 psig. Nut & Lock Washers Furnished.
See Catalog: Page 167

Uses

For use with pressure piloted control circuits, can repeatedly detect a position within 0.005" properly mounted. In jigs or fixtures, will signal circuit position and start-ok to control circuit.

Additional Information

Air Flow3.5 scfm @ 100 psig
Force7 oz. Nominal
Input PSI300 psig
Max PSI300 psig
MediumAir
Mount#15/16-24 Thread
Ports1/8
Stem Travel1/16" max.
Temperature Range32 to 230 F
