MPA-7

More Views

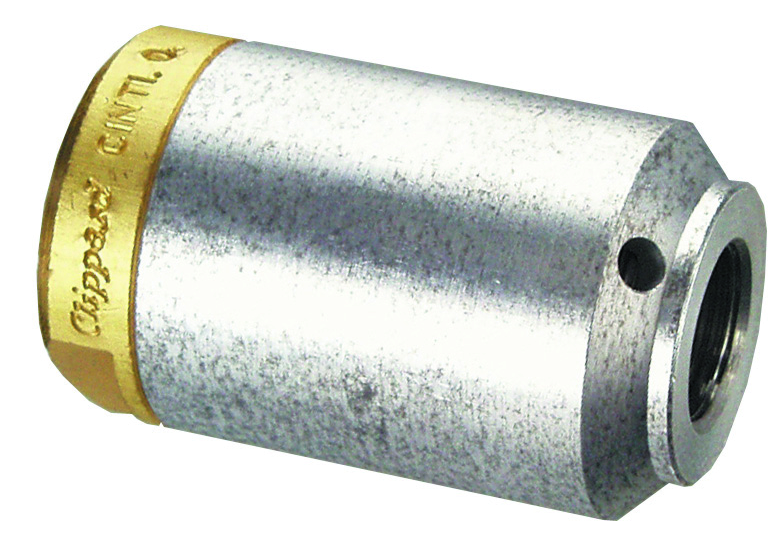

MPA-7

Air Pilot Valve Actuators thread onto the tops of Clippard miniature 2-Way, 3-Way, and 4-Way valves to provide fast pilot actuation from a pneumatic signal. They permit wide circuit flexibility and minimize cost, hazards and complexity by allowing many control functions to be accomplished pneumatically.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • One of the most versatile items in the Clippard line
  • Compatible with all Clippard MAV/MAVO, MJV/MJVO & FV Series valves
  • Allow many control functions to be accomplished pneumatically

    • AccessoriesActuator Spacer 12098-PKG Pkg. of 10, 12098-BLK Bulk
    Bore Size7/8"
    Input PSI250 psig max.
    Length1.625
    Material, BodyBrass, Delrin Piston
    Material, SealsNitrile
    Material, SpringStainless Steel
    Max PSI250 psig
    MediumAir
    Mount#15/32-32 Female Thread
    Port, Inlet1/8"NPT (7/8" Bore)
    UnitImperial
    Weight (lbs.)0.1400
