MJV-4D

More Views

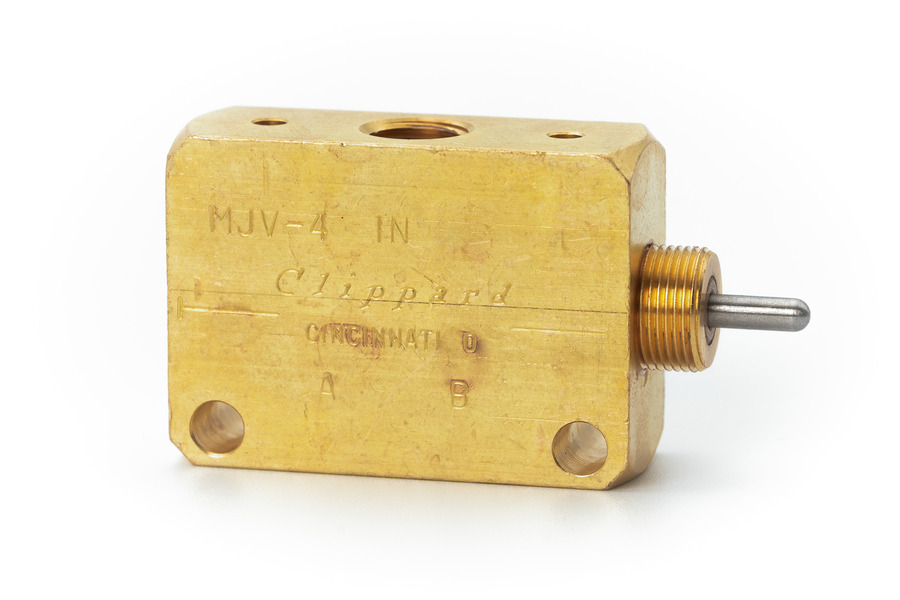

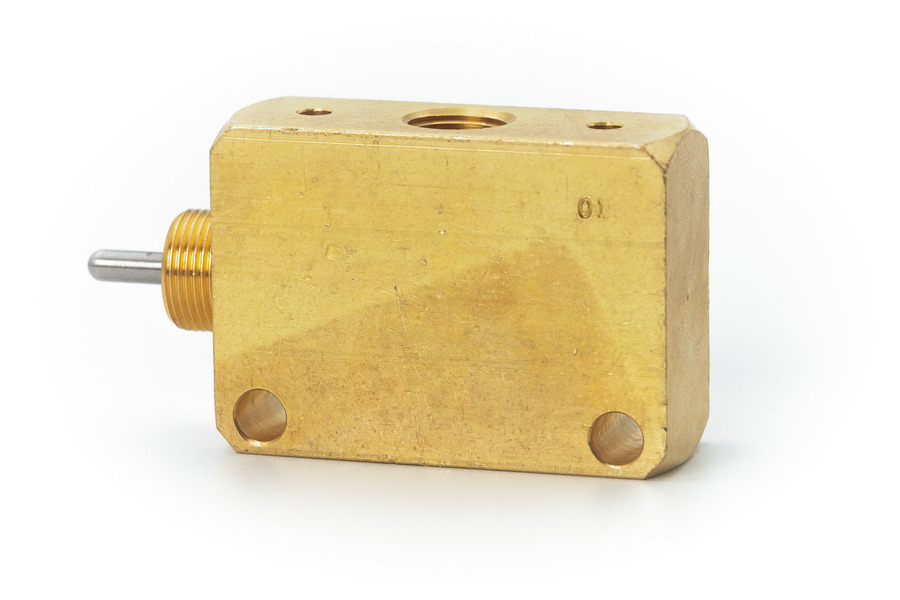

MJV-4D

The MJV/MJVO series are high flow 1/8" NPT ported 2-Way, 3-Way and 4-Way valves that change their flow path when the stem is either depressed or released (spring return). The 2-Way and 3-Way valves are offered in both Normally-Closed and Normally-Open versions.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • High flow poppet or spool design
  • MJV- are Normally-Closed (no flow when not actuated)
  • MJVO- are Normally-Open (flow until actuated)
  • Cartridge valves are designed to be installed in a custom bore

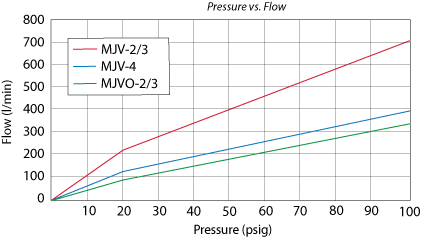

    • Air Flow225 l/min @ 50 psig; 400 l/min @ 100 psig
    Function4-Way
    Included Item(s)Nut & Lockwashers
    Input PSI150 psig
    Material, BodyBrass, ENP Optional
    Material, SealsNitrile, FKM Optional
    Material, Spring & StemStainless Steel
    MediumAir, Water, Oil or Compatible Fluids
    MountIn-Line

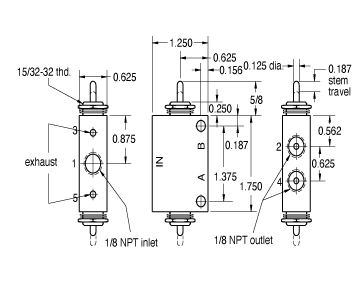

    Mounting#15/32-32 Thread
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Portingn/a (4-Way)
    Ports1/8" NPT
    Product Line BrochureMechanical Valves
    Stem OptionDouble (4-Way)
    Stem Travel3/16"
    Stem Travel3/16"
    StyleStem
    UnitImperial
    Weight (lbs.)0.4400
