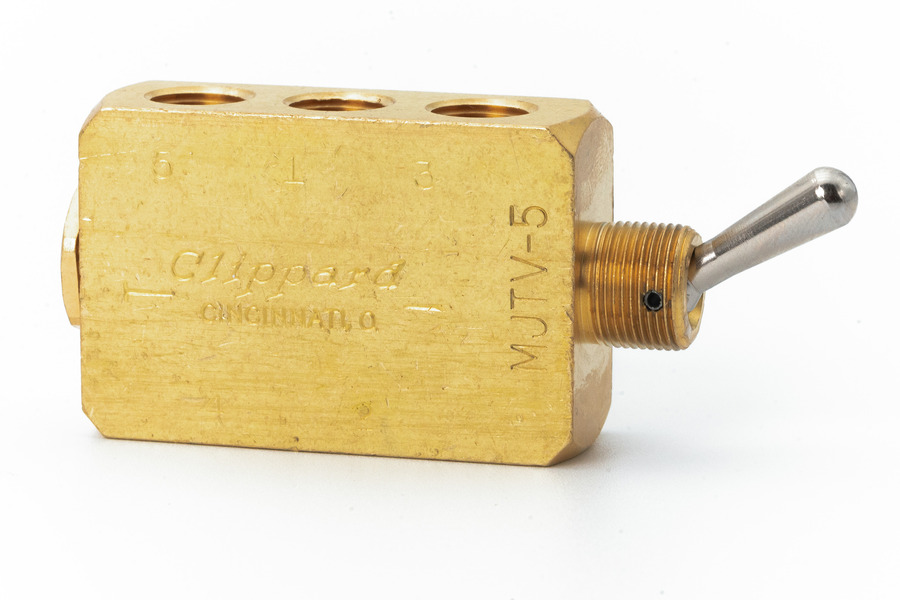

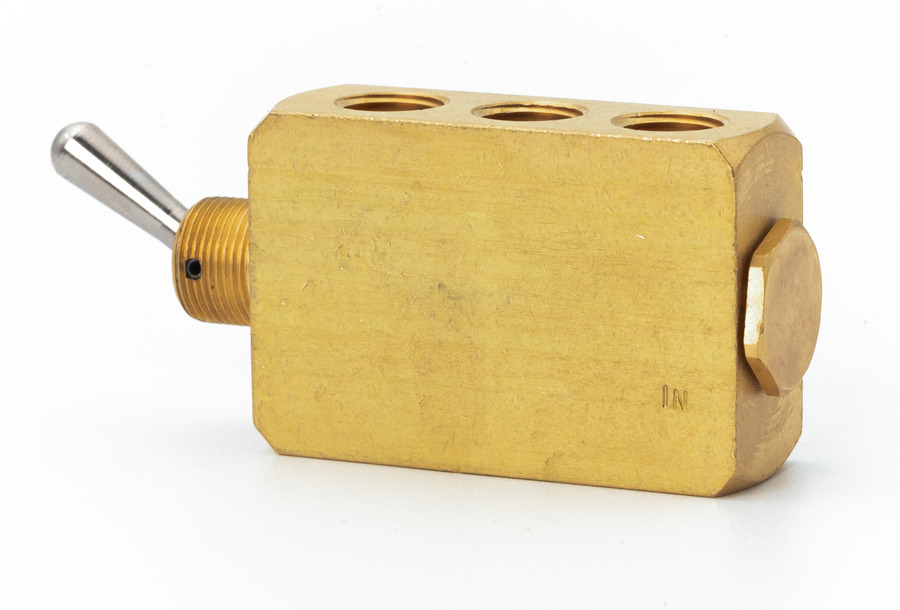

MJTV-5

These #10-32 ported 2-Way, 3-Way and 4-Way valves are manually-actuated with a toggle. The toggles are NP steel and hae a detent action. The MTV-5 has threaded exhaust and can be connected in a dual inlet pressure configuration.
Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Poppet & spool styles
  • For high temperature applications (up to 400°F), or those that require special seals for chemical compatibility, Clippard offers optional FKM seals

  • Air Flow295 l/min @ 100 psig
    Function4-Way Fully-Ported
    Included ItemsNut & Lockwashers
    Material, BodyBrass
    Material, SealsNitrile Std. FKM or Krytox optional
    Material, SpringStainless Steel Stem & Spring
    Material, ToggleNickel-Plated Steel
    Max PSI150 psig
    MediumAir, Oil, Water
    Mount#15/32-32 Thread
    Operating Temperature Range32 to 230 F

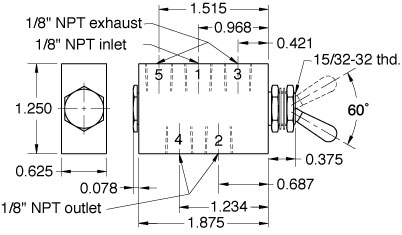

    Port, Inlet / Port, Outlet1/8" NPT / 1/8" NPT
    StyleToggle
    UnitImperial
    Weight0.4200
