MJTV-4

   Product will ship within 1 to 2 business days
MJTV-4

More Views

Get CAD files:

Details

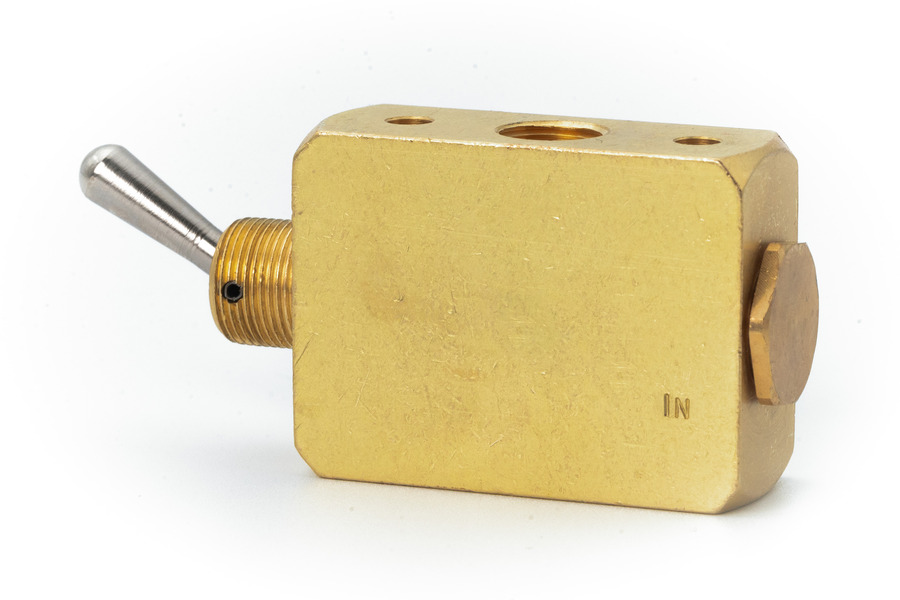

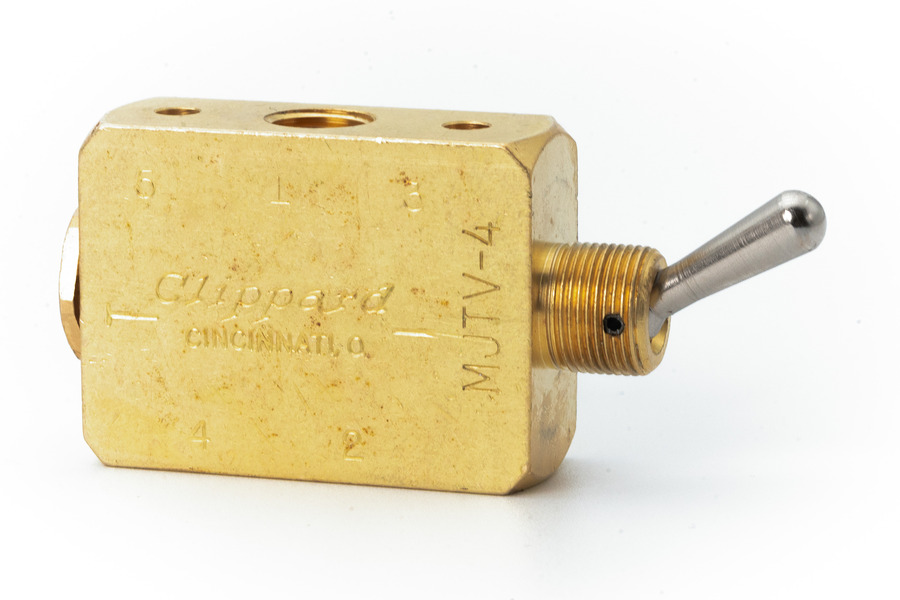

4-Way Toggle Valve, ENP Steel Toggle, 1/8” NPT

Notes

10.5 scfm @ 100 psig
See Catalog: Page 118

Additional Information

Air Flow10.5 scfm @ 100 psig
Exhaustto atmosphere through holes in body
Force3 oz. Nominal
Function4-Way
GasketNut & Lockwashers furnished.
Inlet / Outlet1/8" NPT - 1/8" NPT
Material, BodyBrass
Material, SpringStainless Steel Stem & Spring
Max PSI150 psig
Mount15/32-32 thread.
SealsOptional FKM seals available for high temperature applications.
Temperature Range32 to 230 F
Toggle MaterialENP Steel
Travel Arc60 degrees
UnitImperial
