MEV-2

   Product will ship within 1 to 2 business days
MEV-2

More Views

Get CAD files:

Details

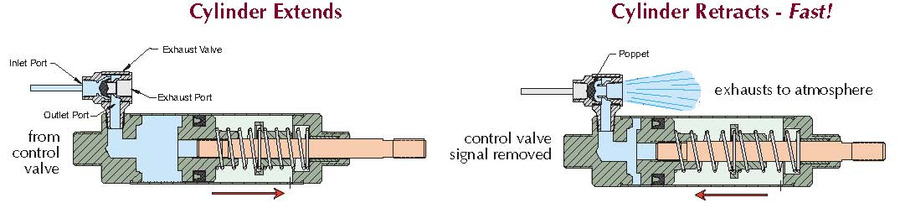

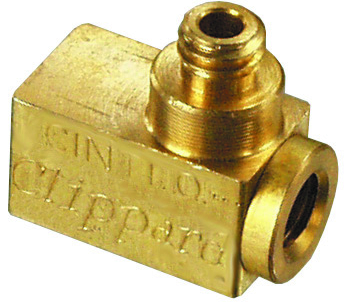

Miniature Exhaust Valve, #10-32

Notes

Not for use with cylinders larger than 7/8" dia.; moderate strokes up to 10"
See Catalog: Page 164

Uses

Working Range: 15 to 150 psig

Additional Information

Air Flow140 l/min @ 50 psig; 250 l/min @ 100 psig (exhaust rate); 220 l/min @ 6 bar
Forceat 50 psig, opens after approx 5 psig drop; at 3.5 bar, opens after approx. 0.35 bar drop

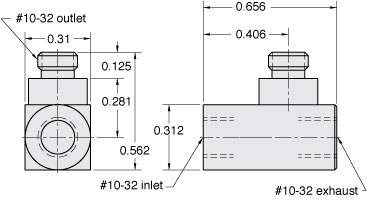

Length0.656
Max PSI15 to 150 psig
MediumAir
MountDirect to Cylinder
Ports#10-32 Threads
Thread#10-32 Inlet, Outlet and Exhaust
