MAVO-3

   Product will ship within 1 to 2 business days
MAVO-3

More Views

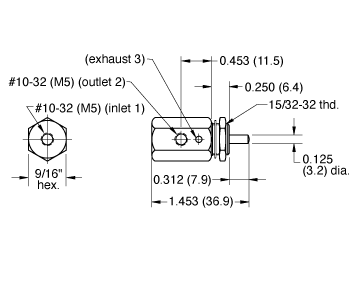

Get CAD files:

Details

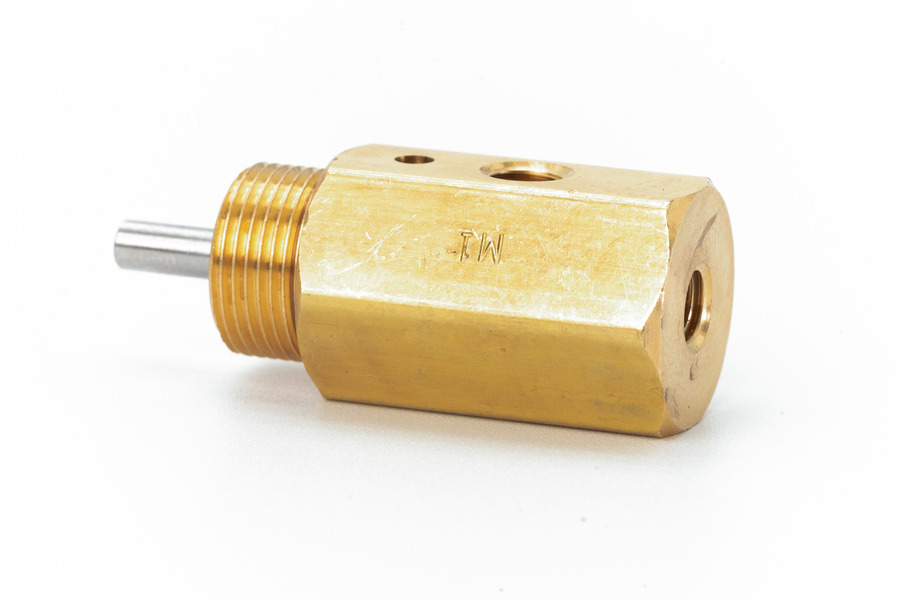

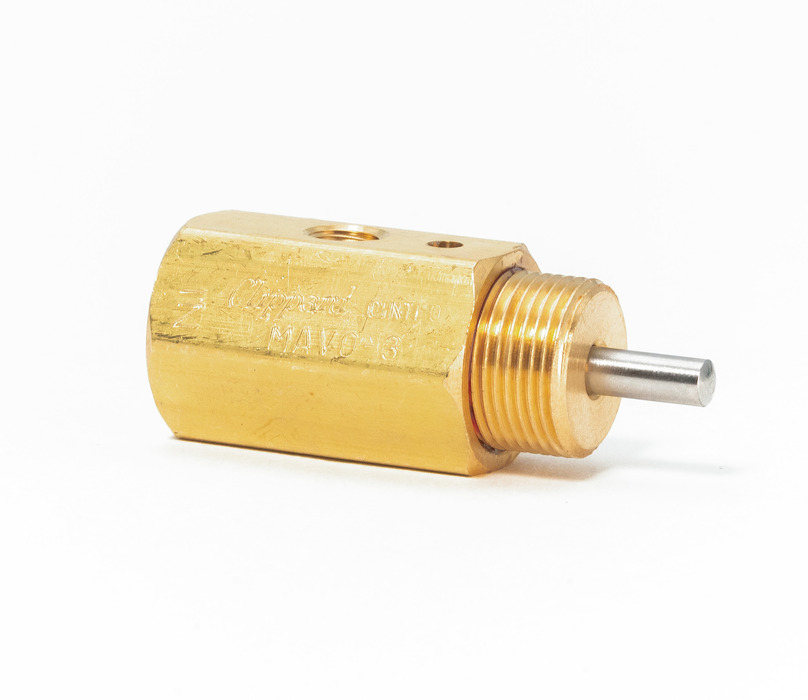

3-Way Stem Valve, Normally-Open, #10-32
See Catalog: Page 113

Additional Information

Air Flow170 l/min @ 50 psig; 280 l/min @ 100 psig
DocumentationCA Prop. 65
ExhaustTo atmosphere through holes in body
Force32 oz. Nominal
Function3-Way
GasketNut & Lockwashers furnished.
Inlet#10-32
Input PSI150 psig max.
Material, BodyBrass, ENP Available
Material, SpringStainless Stem & Spring
MediumAir, Water or Oil
Mount15/32-32 thread.
Outlet#10-32
PortingNormally-Open
SealsNitrile, FKM Optional
Stem Travel1/8"
Temperature Range32 to 230°F
UnitImperial
