MAV-3P

   Product will ship within 1 to 2 business days
MAV-3P

More Views

Get CAD files:

Details

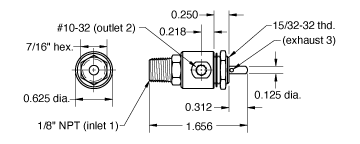

3-Way Stem Valve, Normally-Closed, 1/8" NPT
See Catalog: Page 113

Additional Information

Air Flow113 l/min @ 50 psig; 190 l/min @ 100 psig
ExhaustTo atmosphere through hollow stem
Force24 oz. Nominal
Function3-Way
GasketNut & Lockwashers furnished.
Inlet1/8" NPT
Input PSI300 psig
Material, BodyBrass, ENP Available
Material, SpringStainless Stem & Spring
MediumAir, Water or Oil
Mount15/32-32 thread.
Outlet#10-32
PortingNormally-Closed
SealsNitrile, FKM Optional
Stem Travel1/8"
Temperature Range32 to 230°F
UnitImperial
