Details

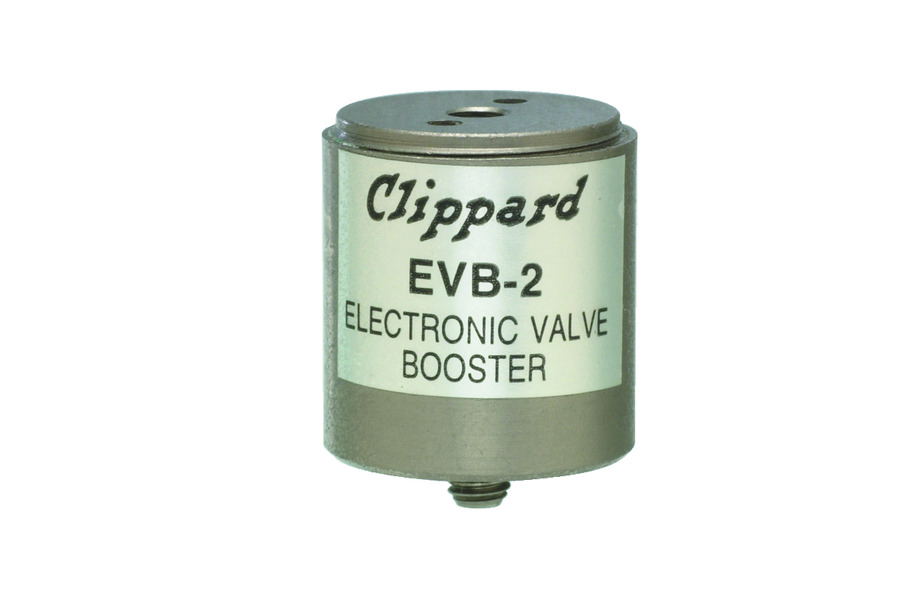

EV/ET 2-Way Booster Valve, Manifold Mount
See Catalog: Page 189

Uses

Will boost the flow of an EV valve by a factor of 10.

Additional Information

Air Flow6.1 scfm @ 100 PSI
Max PSI20 to 105 psig
MountManifold
PortsInlet and outlet through manifold
Response Time20 ms @ 20 psig & 13 ms @ 100 psig
Temperature Range30 to 180°F
