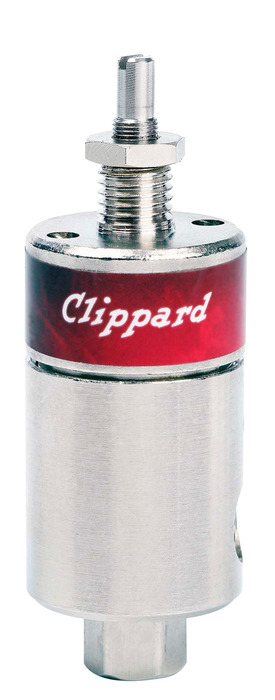

DR-2-1

The DR-2 precision regulators are offered in either relieving or non-relieving versions. The relieving design maintains a constant pressure output even when downstream conditions change, while non-relieving regulators do not automatically compensate for changes in downstream flow or pressure. There is no vent to atmosphere, as in a relieving type regulator, and the output pressure can increase due to a downstream event. Non-relieving versions can also accommodate compatible liquid applications.
Estimated to ship within 15 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • Exceptional repeatability—± 0.1 psi
  • Provides a high level of precision and accuracy
  • For applications where zero air consumption is required (non-bleed)

  • 2D Drawings2D Files
    AccessoriesKnob & Set Screw: AK2.5-B
    AdjustmentScrewdriver Slot
    Included Item(s)Nut & Lockwashers
    Input Pressure300 psig max. (20,7 bar)
    Material, BodyElectroless nickel plated brass
    Material, SealsFKM with PFPE Lube
    Max. Pressure0.5 to 10 psig (0,03-0,7 bar)
    MediumAir, Water* or Oil* (* non-relieving models)
    Mount#5/16-24 thread (M8x1.0 thread)
    Non-Relieving OptionStandard Relieving
    NotesAn extended 0.25" (6.4 mm) shaft accepts an adjustment knob or furnished with an exposed screwdriver slot with micro-adjustment (32 pitch thread). Knobs ordered separately.
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Ports (Inlet - Outlet)#10-32 Female - #10-32 Female
    Repeatability±0.1 psig (0,07 bar) typical (±0.15 psig max, ±0,007 bar)
    Set Point Sensitivity0.1 psig (0,007 bar)
    Set Point Stability0.1 psig (0,007 bar)
    Technical Data SheetData Sheet
    UnitImperial
    Weight0.3000
