9SS-AR-1

More Views

9SS-AR-1

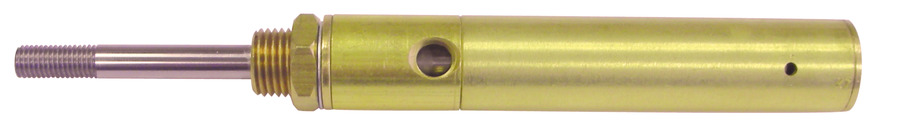

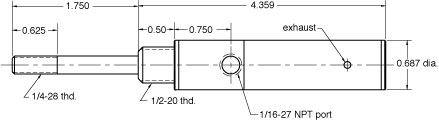

Obsolete-9/16” Single Acting, Stud Mount, Spring Return Cylinder, 1"
Clippard has divested our cylinder product lines to Compact Automation. Click here to learn more.

To continue ordering the same cylinders you have ordered in the past, please click here to locate your nearest Clippard distributor.
ActionSpring Extend, Air Return
Bore0.5625
Max PSI250 PSI
MediumAir
MountStud Mount
Ports10-32 Thread
RodRotating Rod
Rod Diameter0.25
Spring Force (extended)3.7 lb
Spring Force (retracted)1.6 lb
Stroke1.00
Temperature Range30 to 230°F
Weight0.5500
Get CAD files:

Notes

Minimum of 19 psig to retract
