HV/HTV Toggle & Stem Valve Series

Clippard HV/HTV Toggle & Stem Valve Series

Available in 3-way and 4-way configurations, these valves feature the same benefits available with other Minimatic® brass valves: proven reliability, compact size, economical pricing, precision machining and more. These valves feature #10-32 inlet and outlet ports and are available as toggle or stem actuated, in addition to offering cartridge styles.

The HV-3 Series is a fully-ported 3-way valve. This can be used as a selector valve choosing between two separate pressures or fluids (port 2 or 4) going to a single output (port 1). Being fully-ported, the inverse will work as well using the valve as a diverter sending a fluid (port 1) to two separate outputs (port 2 or 4). Also, the valve may be used as a Normally-Closed or Normally-Open 3-way valve. The HV-4 series is a 4-way valve that vents its exhaust ports to atmosphere and is ideal for powering simple cylinder applications.


Medium:  3-Way: Air, Water and Oil; 4-Way: Air
Input Pressure:  150 psig max.
Air Flow:  6.5 scfm @ 50 psig; 15 scfm @ 100 psig
Temperature Range:  32 to 230°F (0 to 110°C)
Mounting:  Manifold only
Ports:  #10-32 / Cartridge
Force for Full Stem Travel:  4 1/2 lb. nominal
Stem Travel: 1/8"
Mounting (Cartridge Style): Inserts into a 1/2" bore
Stem: Stainless Steel
Seals: Nitrile, FKM optional
Toggle: Electroless Nickel-Plated Steel or Plastic

View Ordering Information
Locate a DistributorLocate a Distributor


Part Number Description
HV-3
HV-3C
HTV-3
HTV-3F
HTV-3C
HTV-3CF
HV-4
HV-4C
HTV-4
HTV-4F
HTV-4C
HTV-4CF
Selector/Diverter Stem Valve
Selector/Diverter Stem Cartridge Valve
Selector/Diverter Valve, ENP Steel Toggle
Selector/Diverter Valve, Plastic Toggle
Selector/Diverter Cartridge Valve, ENP Steel Toggle
Selector/Diverter Cartridge Valve, Plastic Toggle
4-Way Stem Valve
4-Way Stem Cartridge Valve
4-Way Valve, ENP Steel Toggle
4-Way Valve, Plastic Toggle
4-Way Cartridge Valve, ENP Steel Toggle
4-Way Cartridge Valve, Plastic Toggle


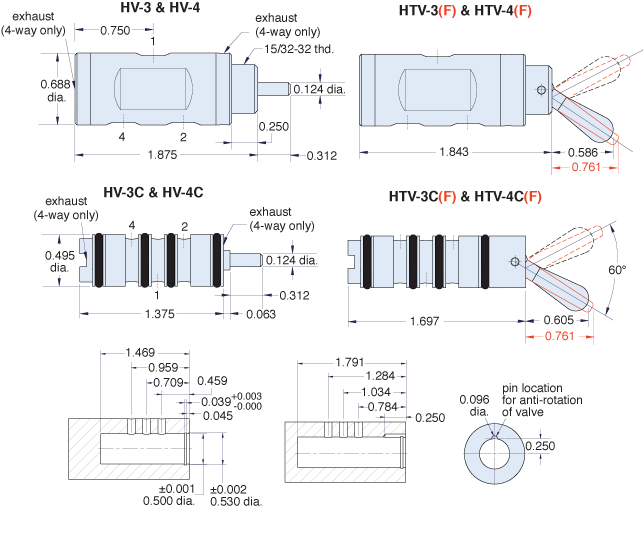

Features
•  Small, compact size, light-weight
•  Design flexibility and fast response
•  Clippard standard stem option available
   for use with inter-changeable actuators
•  15/32-32 male thread for panel mounting
•  Bright dipped brass construction for long
   life and corrosion resistance
•  Stainless steel stems and springs for
   corrosion resistance
•  HV-3 can be used as a Normally-Open
   or Closed 3-way valve
•  4-way valves exhaust to atmosphere




Download Technical Data Sheet
