Clippard EGV Series Electronic High Flow Poppet Valves


Clippard's Next Generation valve is compact, quick, and offers flows to 100 l/min!

Clippard Minimatic® electronic valves are precision-built control valves, utilizing a unique, patented valving principle. The powerful DV- Series was designed as the next generation of the well-known and trusted original EV line of Clippard “Mouse” valves. With a cycle life of over a billion, a solid, compact design, and extremely high flow rates, these valves are suitable for many applications across numerous diverse industries. A variety of voltage, connector and mounting options are available.

Medium:  Compatible Fluids (40 micron filter recommended)
Air Flow:  DV-2/DT-2: 100 l/min @ 100 psig*
                 DV-2-L/DT-2L: 100 l/min @ 50 psig*
                 DV-3/DT-3: 70 l/min @ 100 psig*
Power Consumption: 1.9 watts*
Operating Range: 95 to 125% of rated voltage
Ambient Temperature Range:  32 to 130°F at continuous duty*
Mounting:  Manifold or Cartridge Style (inserts into a 3/4" bore)
Electrical Connection: Spade Terminals or Wire Leads*
Ports:  #10-32 or M5 (on manifold mount valve)
Response: 10 to 15 milliseconds*
Voltage: 12 or 24 VDC*
Wetted Material: PPS, Stainless Steel**
Seal Material: Nitrile standard. Silicone, FKM and EPDM optional**

*   Consult factory for special configurations.
** Other materials available for special design/project requirements.

View Ordering InformationView Ordering Information
Locate a DistributorLocate a Distributor

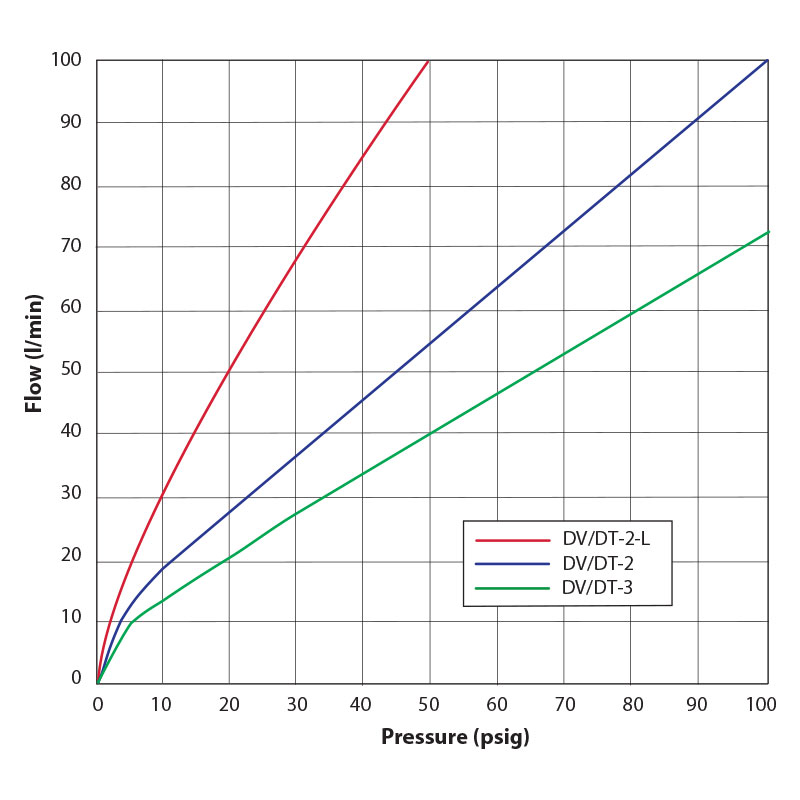

DV Series Flow Chart

Manifold
Part No.
15490-5      Single-Station Manifold Mount
15492-1      Single-Station Cartridge Mount
15781-2      2-Station Manifold Mount
15781-4      4-Station Manifold Mount



Features
•  High flow rate:
       2-Way - up to 100 l/min
       3-Way - up to 70 l/min fully ported
•  Bidirectional / Universal / Fully ported
•  Industry standard for leak-free operation
•  Over 1,000,000,000 cycles!
•  Designed to accommodate large flows
    with more stroke
•  Low heat rise/low power
•  Robust stainless steel "Spider" flat spring

Download Technical Data Sheet
Download Press Release

Watch VideoWatch Product Launch Video

Clippard DV Valve Product Launch Video

Watch VideoWatch Engineering Video
Watch VideoWatch Sales Video
Watch VideoWatch Product Showcase Video
